The recommended mating sequence for PCIE-036-02-F-D-RA is to mate the guide pins first, followed by the signal pins. This ensures proper alignment and prevents damage to the connector.
For optimal performance, it's recommended to follow Samtec's PCB layout guidelines, which include using a solid ground plane, minimizing signal trace length, and using a 100-ohm differential impedance. Additionally, ensure that the PCB material and thickness meet Samtec's recommendations.
The PCIE-036-02-F-D-RA has an operating temperature range of -40°C to 105°C. However, it's essential to note that the connector's performance and reliability may degrade at extreme temperatures. Consult Samtec's documentation for specific temperature-related guidelines.
Yes, the PCIE-036-02-F-D-RA is designed to support PCIe Gen 4 speeds (up to 16 GT/s). However, ensure that your system design meets the PCIe Gen 4 specifications and that the connector is properly terminated and routed to maintain signal integrity.
The recommended torque specification for the PCIE-036-02-F-D-RA is 0.5-1.5 N·m (4-12 in-lbs). Over-torquing can damage the connector, so it's essential to follow Samtec's recommended torque specification.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PCIE-036-02-F-D-RA Overview

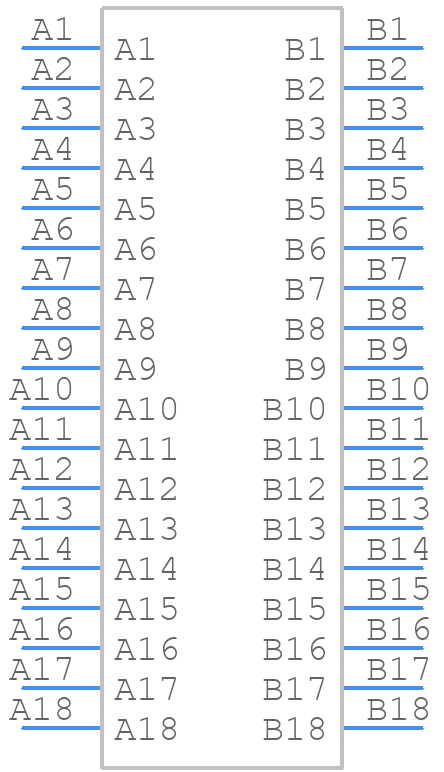

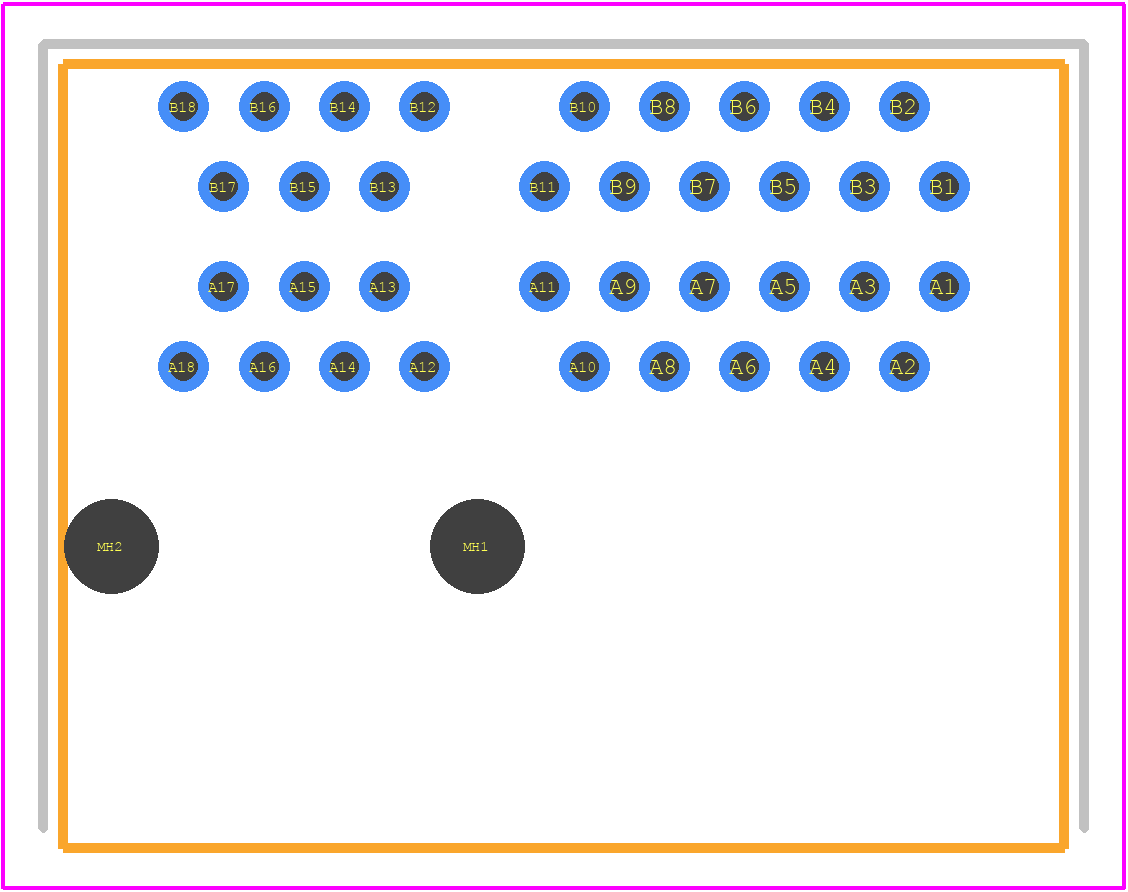

Use the download button to access the PCIE-036-02-F-D-RA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PCIE-,
or try a keyword search, such as Headers and Edge Type Connectors
