PCIE-064-02-S-D-RA footprint, schematic symbol and 3D model by SAMTEC

Symbol

click to zoom

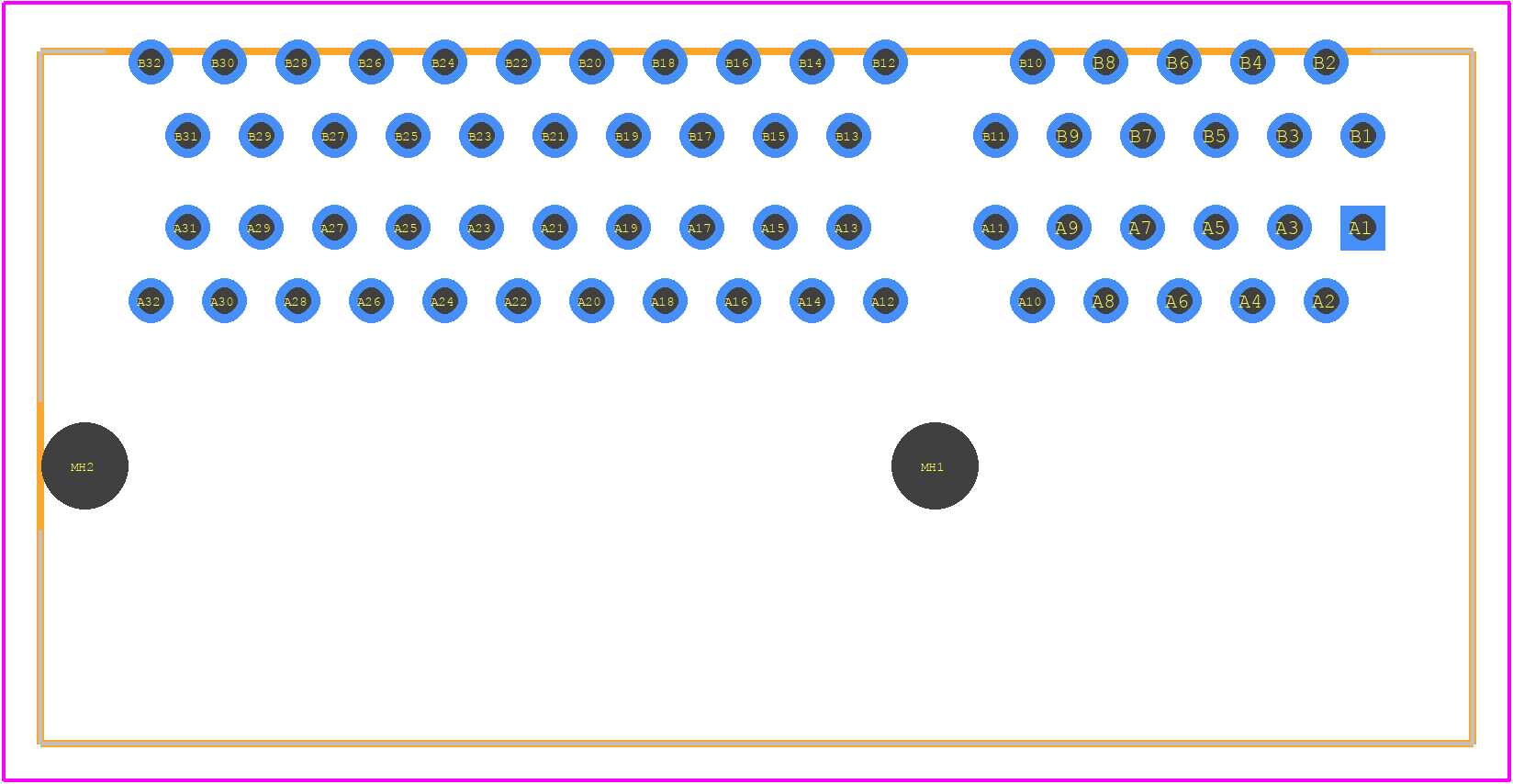

PCB Footprints

PCIE-064-02-S-D-RA - SAMTEC PCB footprint - Other - Other - PCIE-064-02-S-D-RA-2

click to zoom

3D Models

PCIE-064-02-S-D-RA - SAMTEC - 3D model - Other - PCIE-064-02-S-D-RA-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for PCIE-064-02-S-D-RA
Part Number PCIE-064-02-S-D-RA
Manufacturer SAMTEC
Pin Count 64
Part Category Connector
Package Category Other
Footprint Name Other - PCIE-064-02-S-D-RA-2
Released Date Jun 29, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

PCIE-064-02-S-D-RA Details

Manufacturer Part Number:
PCIE-064-02-S-D-RA
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Mainland China, USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
1 Week
Manufacturer:
Samtec Inc
YTEOL:
7
Connector Type:
CARD EDGE CONNECTOR
Contact Finish Mating:
GOLD (30) OVER NICKEL (50)
Contact Finish Termination:
Matte Tin (Sn)
Contact Gender:
FEMALE
Contact Material:
PHOSPHOR BRONZE
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
JESD-609 Code:
e3
MIL Conformance:
NO
Mixed Contacts:
NO
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number of Rows Loaded:
2
Option:
GENERAL PURPOSE
Terminal Pitch:
1 mm
Termination Type:
SOLDER
Total Number of Contacts:
64

PCIE-064-02-S-D-RA Frequently Asked Questions (FAQs)

The recommended PCB footprint for PCIE-064-02-S-D-RA can be found in the Samtec PCB Footprint Library or by contacting Samtec's technical support team.
To ensure proper mating and unmating, follow the recommended mating sequence and handling procedures outlined in the Samtec application notes and technical documentation.
The maximum operating temperature for PCIE-064-02-S-D-RA is 125°C, as specified in the datasheet. However, it's essential to consider the entire system's thermal design and potential thermal gradients.
While PCIE-064-02-S-D-RA is designed for PCIe Gen 3 applications, it may not be suitable for PCIe Gen 4 or higher due to signal integrity and bandwidth limitations. Consult with Samtec's technical support team for guidance on higher-speed applications.
The recommended torque specification for the screws is typically 0.5-1.5 N·m (4-12 in-lbs). However, it's essential to consult the Samtec datasheet and application notes for specific guidance on screw torque and assembly procedures.

Trust Checks

Expert Contribution

System Verified

Community Approved

PCIE-064-02-S-D-RA Overview

Use the download button to access the PCIE-064-02-S-D-RA schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like PCIE-, or try a keyword search, such as Headers and Edge Type Connectors
