Samtec provides a recommended PCB layout and footprint in their application notes and design guides, which can be found on their website. It's essential to follow these guidelines to ensure proper mating and to prevent damage to the connector.
To ensure reliable mating and unmating, it's crucial to follow the recommended mating sequence, apply the correct amount of force, and use the correct mating tools. Samtec provides guidance on these topics in their application notes and technical support resources.
The PCIE-LP-16-01-F-DV-A-K connector is rated for operation from -40°C to 105°C. However, it's essential to check the specific temperature rating for your application, as some connectors may have different temperature ranges depending on the specific configuration and materials used.
The PCIE-LP-16-01-F-DV-A-K connector is designed for PCIe Gen 3 applications, but it may not be suitable for PCIe Gen 4 or Gen 5 applications due to the higher speeds and signal integrity requirements. Samtec offers other connectors specifically designed for PCIe Gen 4 and Gen 5 applications, such as the PCIE-LP-16-01-F-DV-A-K-4 or PCIE-LP-16-01-F-DV-A-K-5.
ESD protection and grounding are critical for PCIe connectors. Samtec recommends following proper ESD handling procedures, using ESD-protective packaging and handling materials, and ensuring proper grounding of the connector to the PCB and chassis. Additional ESD protection devices, such as TVS diodes, may also be necessary depending on the application.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PCIE-LP-16-01-F-DV-A-K Overview

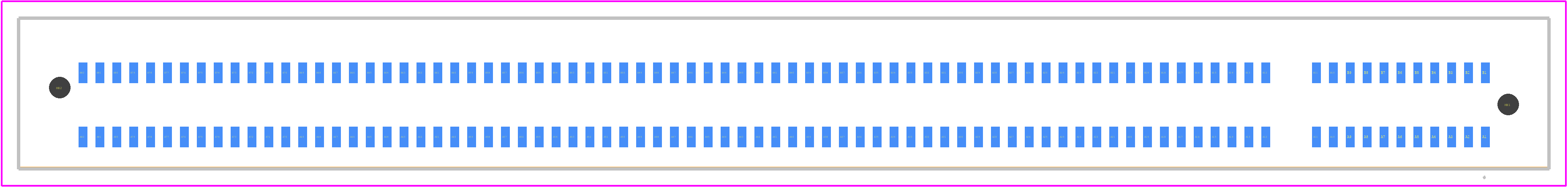

Use the download button to access the PCIE-LP-16-01-F-DV-A-K schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PCIE-,
or try a keyword search, such as Headers and Edge Type Connectors
