Samtec provides a recommended PCB layout and footprint in their application notes and design files, which can be found on their website. It's essential to follow these guidelines to ensure proper mating and to prevent damage to the connector.
To ensure reliable mating and unmating, follow Samtec's recommended mating and unmating sequence, and apply a gentle, even force. Avoid applying excessive force, twisting, or rocking the connector, as this can cause damage to the contacts or the PCB.
The PCIE-LP-16-01-S-DV-A-WT connector is rated for operation from -40°C to +125°C. However, it's essential to note that the operating temperature range may be affected by the specific application and the environment in which the connector is used.
Yes, the PCIE-LP-16-01-S-DV-A-WT connector is designed to support PCIe Gen 3 and Gen 4 speeds, with a bandwidth of up to 32 GT/s.
Samtec recommends using a soft, dry brush or a lint-free swab to gently remove any debris or contaminants from the connector. Avoid using harsh chemicals, abrasive materials, or excessive force, as this can damage the contacts or the PCB.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PCIE-LP-16-01-S-DV-A-WT Overview

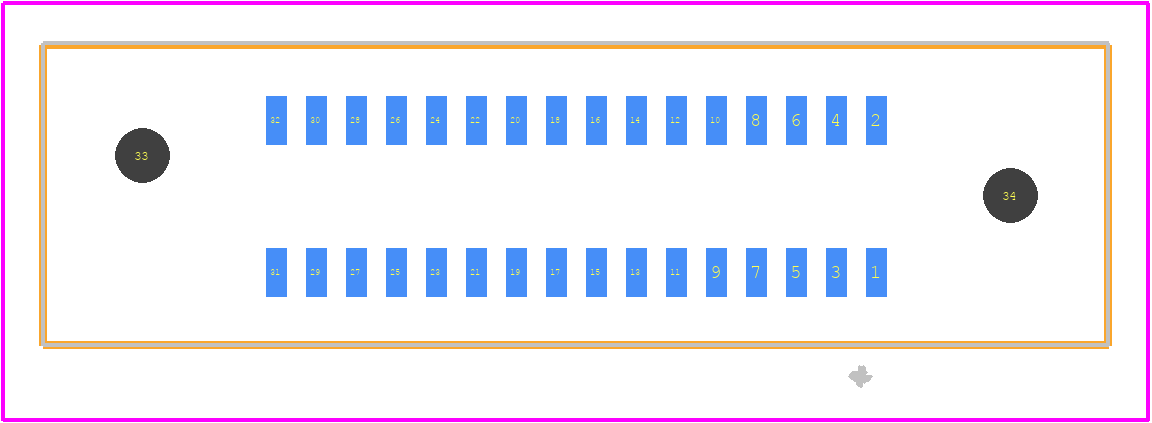

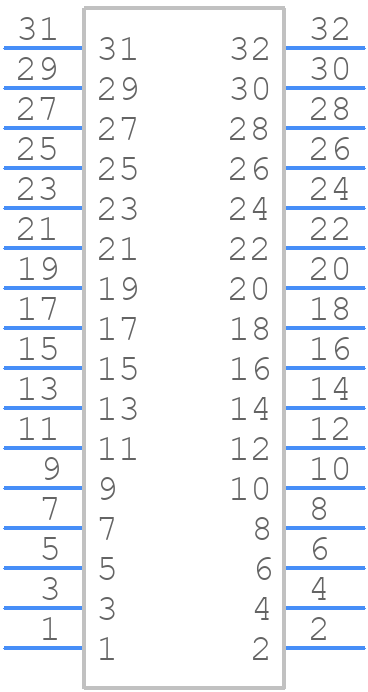

Use the download button to access the PCIE-LP-16-01-S-DV-A-WT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PCIE-,
or try a keyword search, such as Headers and Edge Type Connectors
