PCMF1HDMI2SZ - Nexperia

Description: PCMFxHDMI2S - Common-mode EMI filter for differential channels with integrated ESD protection

Download PCMF1HDMI2SZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

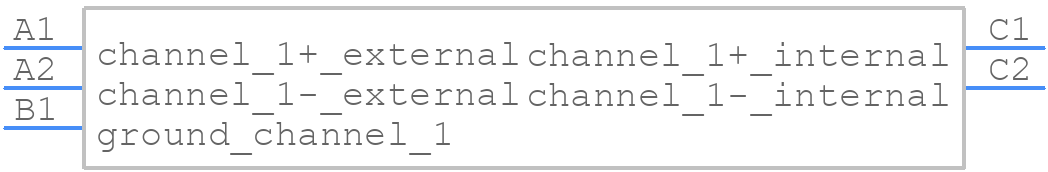

Symbol
PCMF1HDMI2SZ - Nexperia - PCB symbol
click to zoom
PCB Footprints
PCMF1HDMI2SZ - Nexperia PCB footprint - Other - Other - WLCSP5_2-1-2
click to zoom
3D Models
PCMF1HDMI2SZ - Nexperia - 3D model - Other - WLCSP5_2-1-2
click to zoom

PCMF1HDMI2SZ Details

  • Manufacturer Part Number:

    PCMF1HDMI2SZ

  • Brand Name:

    Nexperia

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    CSP

  • Package Description:

    WLCSP5, 5 PIN

  • Pin Count:

    5

  • Manufacturer Package Code:

    WLCSP5_2-1-2

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Nexperia

  • YTEOL:

    7

  • Approvals:

    IEC

  • Capacitance:

    0.25 µF

  • Filter Type:

    DATA LINE FILTER

  • Height:

    0.6 mm

  • Length:

    1.22 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    50 OHM Ω

  • Rated Voltage:

    5 V

  • Width:

    0.82 mm

PCMF1HDMI2SZ Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the HDMI traces as short as possible and use a 100-ohm differential impedance. Use a common mode filter and a shielded cable to minimize EMI.
  • Follow the HDMI 2.0 specification guidelines for transmitter and receiver design. Ensure the PCMF1HDMI2SZ is used in conjunction with a compliant HDMI 2.0 transmitter and receiver. Verify the design using HDMI 2.0 compliance testing tools.
  • The maximum cable length supported is approximately 10 meters (33 feet) at 18 Gbps. However, this can vary depending on the cable quality, signal attenuation, and system design.
  • Use a hot-plug detector circuit to detect the presence or absence of an HDMI device. Implement a power management scheme to handle power-on and power-off sequencing. Ensure the PCMF1HDMI2SZ is powered down before hot-unplugging and powered up after hot-plugging.
  • The PCMF1HDMI2SZ has a maximum junction temperature of 125°C. Ensure good airflow around the device, and consider using a heat sink or thermal pad to dissipate heat. Avoid overheating, which can affect device reliability and performance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PCMF1HDMI2SZ Overview

Use the download button to access the PCMF1HDMI2SZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PCMF1, or try a keyword search, such as Data Line Filters

About Nexperia

Nexperia is a leading global player in the semiconductor industry. Specializing in essential electronic components, Nexperia offers a diverse range of products including discrete components, MOSFETs, logic ICs, and analog ICs. These components are integral to a multitude of applications across automotive, industrial, consumer electronics, and computing sectors, where reliability, performance, and efficiency are paramount.
