PCMF1USB3S/CZ - Nexperia

Description: PCMFxUSB3S - Common-mode EMI filter for differential channels with integrated ESD protection

Download PCMF1USB3S/CZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

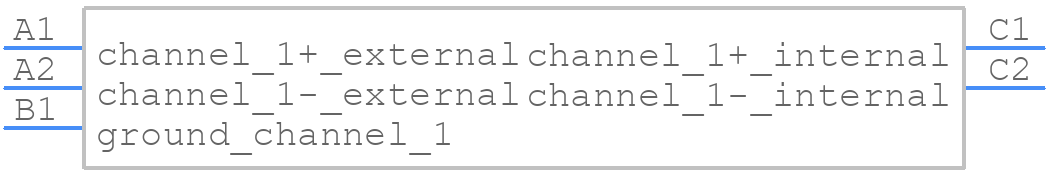

Symbol
PCMF1USB3S/CZ - Nexperia - PCB symbol
click to zoom
PCB Footprints
PCMF1USB3S/CZ - Nexperia PCB footprint - Other - Other - WLCSP5_2-1-2
click to zoom
3D Models
PCMF1USB3S/CZ - Nexperia - 3D model - Other - WLCSP5_2-1-2
click to zoom

PCMF1USB3S/CZ Details

  • Manufacturer Part Number:

    PCMF1USB3S/CZ

  • Brand Name:

    Nexperia

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    CSP

  • Pin Count:

    5

  • Manufacturer Package Code:

    WLCSP5_2-1-2

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Nexperia

  • YTEOL:

    7

  • Capacitance:

    0.25 µF

  • DC Resistance-Max:

    3 Ω

  • Filter Type:

    DATA LINE FILTER

  • Height:

    0.6 mm

  • Insertion Loss-Max:

    -38 dB

  • Length:

    1.22 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Rated Voltage:

    5 V

  • Screening Level:

    IEC 61000-4-2,4-5; IEC-60134

  • Width:

    0.82 mm

PCMF1USB3S/CZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the PCMF1USB3S/CZ should have a solid ground plane, short traces, and minimal vias to reduce signal loss and noise. A 4-layer PCB with a dedicated ground plane is recommended.
  • To ensure signal integrity, use a 90-ohm differential impedance for the USB traces, keep the traces short and matched, and use a common mode filter to reduce EMI.
  • The PCMF1USB3S/CZ supports cable lengths up to 3 meters, but this can be extended to 5 meters with the use of active cables or repeaters.
  • The PCMF1USB3S/CZ has an integrated voltage regulator, but it's recommended to use an external power management IC to ensure efficient power distribution and reduce heat generation.
  • The PCMF1USB3S/CZ has a thermal pad that should be connected to a solid ground plane to dissipate heat. A thermal interface material can be used to improve heat transfer between the device and the PCB.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PCMF1USB3S/CZ Overview

Use the download button to access the PCMF1USB3S/CZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PCMF1, or try a keyword search, such as Data Line Filters

About Nexperia

Nexperia is a leading global player in the semiconductor industry. Specializing in essential electronic components, Nexperia offers a diverse range of products including discrete components, MOSFETs, logic ICs, and analog ICs. These components are integral to a multitude of applications across automotive, industrial, consumer electronics, and computing sectors, where reliability, performance, and efficiency are paramount.
