PCMF1USB3SZ - Nexperia

Description: PCMFxUSB3S - Common-mode EMI filter for differential channels with integrated ESD protection

Download PCMF1USB3SZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

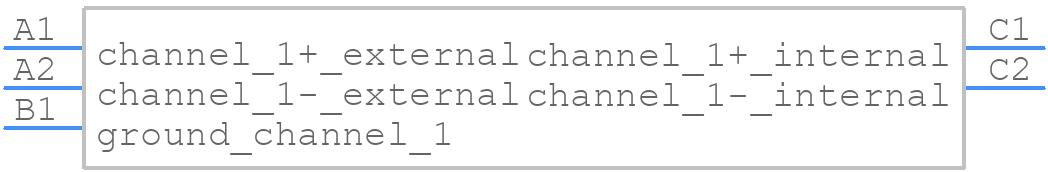

PCMF1USB3SZ - Nexperia - PCB symbol
click to zoom
PCB Footprints
PCMF1USB3SZ - Nexperia PCB footprint - Other - Other - WLCSP5_2-1-2
click to zoom
3D Models
PCMF1USB3SZ - Nexperia - 3D model - Other - WLCSP5_2-1-2
click to zoom

PCMF1USB3SZ Details

  • Manufacturer Part Number:

    PCMF1USB3SZ

  • Brand Name:

    Nexperia

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    CSP

  • Pin Count:

    5

  • Manufacturer Package Code:

    WLCSP5_2-1-2

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Nexperia

  • YTEOL:

    7

  • Capacitance:

    0.25 µF

  • DC Resistance-Max:

    3 Ω

  • Filter Type:

    DATA LINE FILTER

  • Height:

    0.6 mm

  • Insertion Loss-Max:

    -38 dB

  • Length:

    1.22 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Rated Voltage:

    5 V

  • Screening Level:

    IEC 61000-4-2,4-5; IEC-60134

  • Width:

    0.82 mm

PCMF1USB3SZ Frequently Asked Questions (FAQs)

  • A good PCB layout for PCMF1USB3SZ involves keeping the signal traces short and away from noise sources, using a solid ground plane, and placing the device close to the USB connector. A 4-layer PCB with a dedicated ground plane is recommended.
  • To ensure EMC, use a shielded USB cable, keep the device away from high-frequency sources, and use a common-mode choke or ferrite bead on the USB lines. Also, ensure the PCB layout is optimized for EMC.
  • The maximum cable length supported by PCMF1USB3SZ is 3 meters, as per the USB 3.2 Gen 1 specification. However, the actual cable length may vary depending on the cable quality and the system's signal integrity.
  • Yes, PCMF1USB3SZ can be used in a USB-C application, but it requires an additional USB-C controller and a USB-C receptacle. The device's USB 3.2 Gen 1 interface is compatible with USB-C, but the device itself is not a USB-C controller.
  • PCMF1USB3SZ has an integrated power management system that can be controlled through the I2C interface. The device can be put into low-power mode or shut down completely to reduce power consumption.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PCMF1USB3SZ Overview

Use the download button to access the PCMF1USB3SZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PCMF1, or try a keyword search, such as Data Line Filters

About Nexperia

Nexperia is a leading global player in the semiconductor industry. Specializing in essential electronic components, Nexperia offers a diverse range of products including discrete components, MOSFETs, logic ICs, and analog ICs. These components are integral to a multitude of applications across automotive, industrial, consumer electronics, and computing sectors, where reliability, performance, and efficiency are paramount.
