Part Image

PCMF2HDMI2BA-CZ - Nexperia

Description: PCMFxHDMI2BA-C Series - Common-mode EMI filter for differential channels with integrated bidirectional ESD protection

Download PCMF2HDMI2BA-CZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

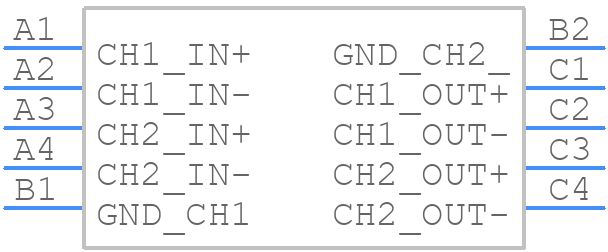

Symbol
PCMF2HDMI2BA-CZ - Nexperia - PCB symbol
click to zoom
PCB Footprints
PCMF2HDMI2BA-CZ - Nexperia PCB footprint - Other - Other - OL-PCMF2HDMI2BA-C
click to zoom
3D Models
PCMF2HDMI2BA-CZ - Nexperia - 3D model - Other - OL-PCMF2HDMI2BA-C
click to zoom

PCMF2HDMI2BA-CZ Details

  • Manufacturer Part Number:

    PCMF2HDMI2BA-CZ

  • Brand Name:

    Nexperia

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WLCSP-10

  • Manufacturer Package Code:

    OL-PCMF2HDMI2BA-C

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Nexperia

  • YTEOL:

    7

  • Approvals:

    IEC

  • Capacitance:

    0.3 µF

  • Filter Type:

    DATA LINE FILTER

  • Height:

    0.64 mm

  • Length:

    1.61 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    50 OHM Ω

  • Rated Voltage:

    4 V

  • Width:

    1.22 mm

PCMF2HDMI2BA-CZ Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the HDMI traces as short as possible and away from noise sources.
  • Follow the HDMI 2.0 specification guidelines, use a certified HDMI 2.0 cable, and ensure the PCMF2HDMI2BA-CZ is configured correctly using the I2C interface.
  • The maximum cable length supported is 10 meters, but this can be extended up to 15 meters with active cables or repeaters.
  • Use an oscilloscope to measure the HDMI signal, check for signal attenuation, and verify the HDMI cable and connector quality.
  • Yes, but ensure proper signal routing, use a common clock domain, and follow the Nexperia application note for multi-board designs.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PCMF2HDMI2BA-CZ Overview

Use the download button to access the PCMF2HDMI2BA-CZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PCMF2, or try a keyword search, such as Data Line Filters

About Nexperia

Nexperia is a leading global player in the semiconductor industry. Specializing in essential electronic components, Nexperia offers a diverse range of products including discrete components, MOSFETs, logic ICs, and analog ICs. These components are integral to a multitude of applications across automotive, industrial, consumer electronics, and computing sectors, where reliability, performance, and efficiency are paramount.
