PCMF2USB30Z - Nexperia

Description: PCMFxUSB30 series - Common-mode EMI filter for differential channels with integrated ESD protection

Download PCMF2USB30Z Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

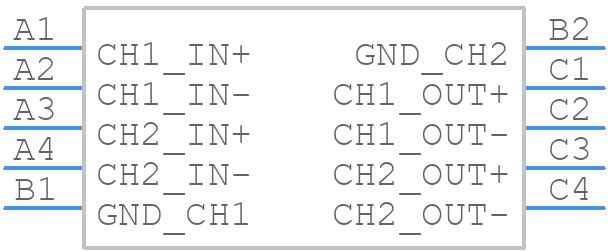

Symbol
PCMF2USB30Z - Nexperia - PCB symbol
click to zoom
PCB Footprints
PCMF2USB30Z - Nexperia PCB footprint - Other - Other - WLCSP10_4-2-4
click to zoom
3D Models
PCMF2USB30Z - Nexperia - 3D model - Other - WLCSP10_4-2-4
click to zoom

PCMF2USB30Z Details

  • Manufacturer Part Number:

    PCMF2USB30Z

  • Brand Name:

    Nexperia

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WLCSP10, 10 PIN

  • Manufacturer Package Code:

    WLCSP10_4-2-4

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Nexperia

  • YTEOL:

    7.39

  • Approvals:

    IEC

  • Capacitance:

    0.25 µF

  • Filter Type:

    DATA LINE FILTER

  • Height:

    0.6 mm

  • Length:

    1.62 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    2

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Rated Voltage:

    5 V

  • Width:

    1.22 mm

PCMF2USB30Z Frequently Asked Questions (FAQs)

  • The PCMF2USB30Z supports cable lengths up to 3 meters, but it's recommended to use cables with a maximum length of 2 meters to ensure reliable operation.
  • Yes, the PCMF2USB30Z is designed to work with USB-C connectors and supports USB 3.2 Gen 2 speeds.
  • To ensure EMC, follow proper PCB design and layout guidelines, use shielding and grounding, and consider using additional EMI filters or common-mode chokes if necessary.
  • The PCMF2USB30Z has a typical power consumption of 150 mA during active mode and 10 μA during standby mode.
  • Yes, the PCMF2USB30Z is suitable for industrial and automotive applications due to its operating temperature range of -40°C to 85°C and its robust design.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PCMF2USB30Z Overview

Use the download button to access the PCMF2USB30Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PCMF2, or try a keyword search, such as Data Line Filters

About Nexperia

Nexperia is a leading global player in the semiconductor industry. Specializing in essential electronic components, Nexperia offers a diverse range of products including discrete components, MOSFETs, logic ICs, and analog ICs. These components are integral to a multitude of applications across automotive, industrial, consumer electronics, and computing sectors, where reliability, performance, and efficiency are paramount.
