Part Image

PCMF3HDMI14SZ - Nexperia

Description: PCMFXHDMI14S series - Common-mode EMI filter for differential channels with integrated ESD protection

Download PCMF3HDMI14SZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

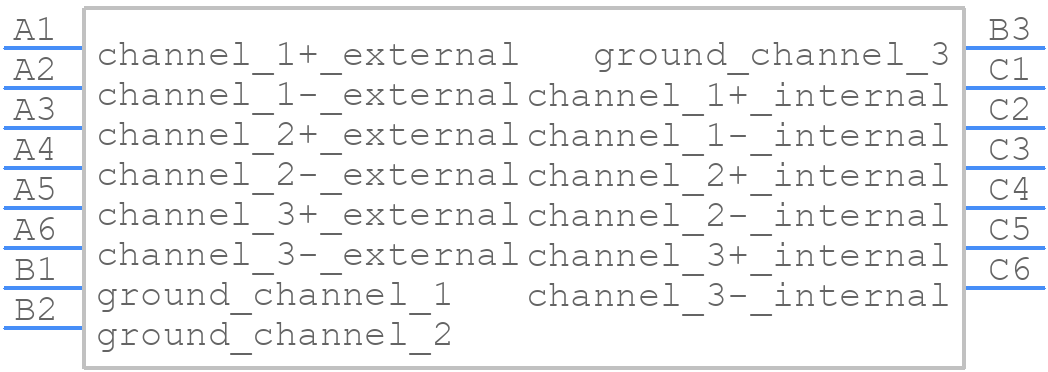

Symbol
PCMF3HDMI14SZ - Nexperia - PCB symbol
click to zoom
PCB Footprints
PCMF3HDMI14SZ - Nexperia PCB footprint - Other - Other - WLCSP15_6-3-6
click to zoom
3D Models
PCMF3HDMI14SZ - Nexperia - 3D model - Other - WLCSP15_6-3-6
click to zoom

PCMF3HDMI14SZ Details

  • Manufacturer Part Number:

    PCMF3HDMI14SZ

  • Brand Name:

    Nexperia

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer Package Code:

    WLCSP15_6-3-6

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Nexperia

  • YTEOL:

    7.39

  • Capacitance:

    0.25 µF

  • DC Resistance-Max:

    3 Ω

  • Filter Type:

    DATA LINE FILTER

  • Height:

    0.6 mm

  • Insertion Loss-Max:

    -31.5 dB

  • Length:

    2.42 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    3

  • Number of Terminals:

    15

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    50 OHM Ω

  • Rated Voltage:

    5 V

  • Screening Level:

    IEC 61000-4-2,4-5; IEC-60134

  • Width:

    1.22 mm

PCMF3HDMI14SZ Frequently Asked Questions (FAQs)

  • Nexperia provides a recommended PCB layout in the application note AN11559, which includes guidelines for trace routing, component placement, and thermal management to ensure optimal performance and signal integrity.
  • The PCMF3HDMI14SZ has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing. Additionally, Nexperia provides guidelines for ESD protection in their application note AN11559.
  • The PCMF3HDMI14SZ supports cable lengths up to 30 meters at 6 Gbps, but the actual maximum length may vary depending on the specific application, cable quality, and signal integrity requirements.
  • The PCMF3HDMI14SZ is designed for HDMI 1.4 applications, but it may not support all the features and speeds required for HDMI 2.1. For HDMI 2.1 applications, Nexperia recommends using their newer devices, such as the PCMF3HDMI24SZ.
  • The PCMF3HDMI14SZ can be configured for different HDMI modes using the device's registers and control pins. Nexperia provides detailed information on configuration and register settings in the device's datasheet and application notes.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PCMF3HDMI14SZ Overview

Use the download button to access the PCMF3HDMI14SZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PCMF3, or try a keyword search, such as Data Line Filters

About Nexperia

Nexperia is a leading global player in the semiconductor industry. Specializing in essential electronic components, Nexperia offers a diverse range of products including discrete components, MOSFETs, logic ICs, and analog ICs. These components are integral to a multitude of applications across automotive, industrial, consumer electronics, and computing sectors, where reliability, performance, and efficiency are paramount.
