PCMF3HDMI2SZ - Nexperia

Description: PCMFxHDMI2S - Common-mode EMI filter for differential channels with integrated ESD protection

Download PCMF3HDMI2SZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

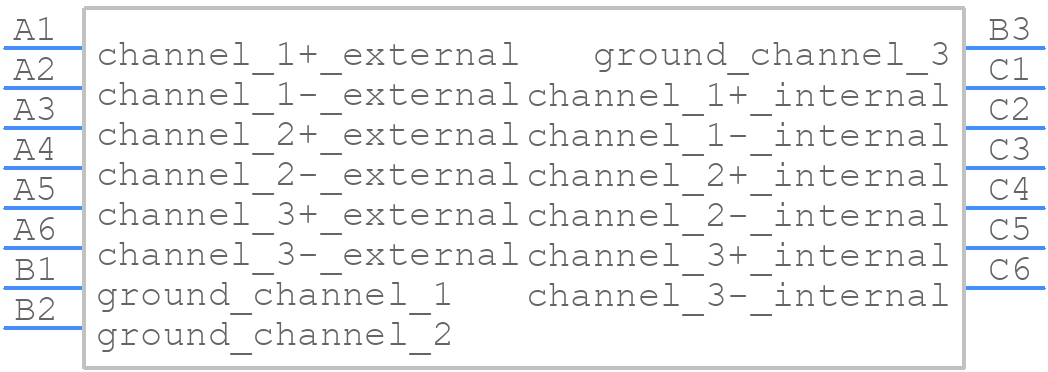

PCMF3HDMI2SZ - Nexperia - PCB symbol
click to zoom
PCB Footprints
PCMF3HDMI2SZ - Nexperia PCB footprint - Other - Other - WLCSP15_6-3-6
click to zoom
3D Models
PCMF3HDMI2SZ - Nexperia - 3D model - Other - WLCSP15_6-3-6
click to zoom

PCMF3HDMI2SZ Details

  • Manufacturer Part Number:

    PCMF3HDMI2SZ

  • Brand Name:

    Nexperia

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WLCSP15, 15 PIN

  • Manufacturer Package Code:

    WLCSP15_6-3-6

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Nexperia

  • YTEOL:

    7.39

  • Approvals:

    IEC

  • Capacitance:

    0.25 µF

  • Filter Type:

    DATA LINE FILTER

  • Height:

    0.6 mm

  • Length:

    2.42 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    2

  • Number of Terminals:

    15

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    50 OHM Ω

  • Rated Voltage:

    5 V

  • Width:

    1.22 mm

PCMF3HDMI2SZ Frequently Asked Questions (FAQs)

  • A good PCB layout for PCMF3HDMI2SZ involves keeping the HDMI traces as short as possible, using a solid ground plane, and minimizing vias and layer changes. It's also recommended to use a common mode filter on the HDMI lines.
  • To ensure EMI compliance, use a shielded cable, keep the HDMI cable length as short as possible, and use a common mode filter on the HDMI lines. Additionally, ensure that the PCB layout is optimized for EMI reduction.
  • The maximum operating temperature range for PCMF3HDMI2SZ is -40°C to 85°C. However, it's recommended to operate the device within a temperature range of 0°C to 70°C for optimal performance.
  • Yes, PCMF3HDMI2SZ is compatible with HDMI 2.1 applications, supporting data rates up to 48 Gbps. However, it's essential to ensure that the PCB layout and component selection are optimized for high-speed signals.
  • To troubleshoot issues with PCMF3HDMI2SZ, start by checking the PCB layout and component selection. Ensure that the HDMI traces are properly terminated, and the power supply is stable. Use an oscilloscope to analyze the HDMI signal quality and check for any signs of signal degradation.
