PCMF3USB30Z - Nexperia

Description: PCMFxUSB30 series - Common-mode EMI filter for differential channels with integrated ESD protection

Download PCMF3USB30Z Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

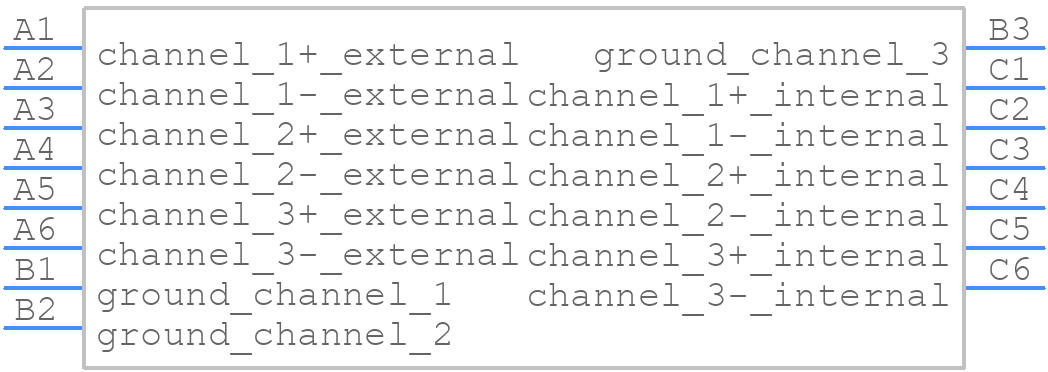

PCMF3USB30Z - Nexperia - PCB symbol
click to zoom
PCB Footprints
PCMF3USB30Z - Nexperia PCB footprint - Other - Other - WLCSP15_6-3-6
click to zoom
3D Models
PCMF3USB30Z - Nexperia - 3D model - Other - WLCSP15_6-3-6
click to zoom

PCMF3USB30Z Details

  • Manufacturer Part Number:

    PCMF3USB30Z

  • Brand Name:

    Nexperia

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WLCSP15, 15 PIN

  • Manufacturer Package Code:

    WLCSP15_6-3-6

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Nexperia

  • YTEOL:

    7.39

  • Approvals:

    IEC

  • Capacitance:

    0.25 µF

  • Filter Type:

    DATA LINE FILTER

  • Height:

    0.6 mm

  • Length:

    2.42 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    3

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Rated Voltage:

    5 V

  • Width:

    1.22 mm

PCMF3USB30Z Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the PCMF3USB30Z is -40°C to 85°C.
  • Yes, the PCMF3USB30Z is compatible with both USB 3.0 and USB 2.0, making it a versatile solution for various applications.
  • The maximum current rating for the PCMF3USB30Z is 3A, making it suitable for high-power applications.
  • Yes, the PCMF3USB30Z has built-in overcurrent protection, which helps prevent damage to the device and connected equipment in case of an overcurrent event.
  • Yes, the PCMF3USB30Z is RoHS and REACH compliant, making it suitable for use in environmentally friendly and sustainable designs.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PCMF3USB30Z Overview

Use the download button to access the PCMF3USB30Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PCMF3, or try a keyword search, such as Data Line Filters

About Nexperia

Nexperia is a leading global player in the semiconductor industry. Specializing in essential electronic components, Nexperia offers a diverse range of products including discrete components, MOSFETs, logic ICs, and analog ICs. These components are integral to a multitude of applications across automotive, industrial, consumer electronics, and computing sectors, where reliability, performance, and efficiency are paramount.
