Part Image

PCMF3USB3S/CZ - Nexperia

Description: EMI Filter Circuits Common-mode EMI filter for differential channels with integrated ESD protection

Download PCMF3USB3S/CZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

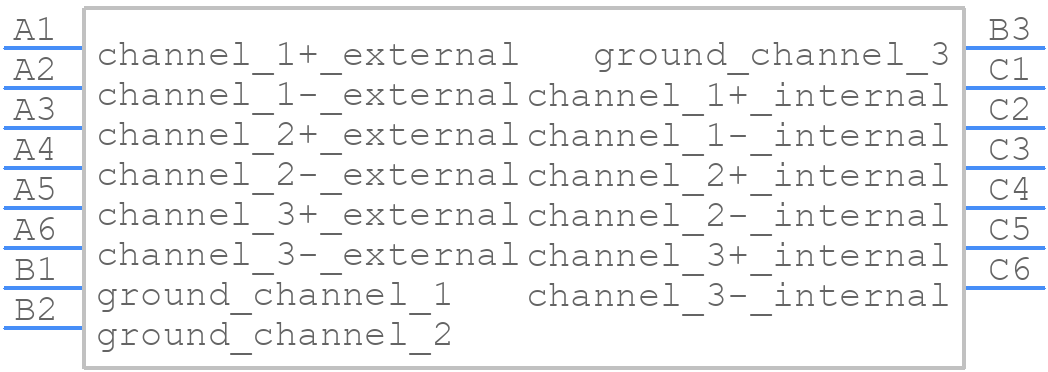

PCMF3USB3S/CZ - Nexperia - PCB symbol
click to zoom
PCB Footprints
PCMF3USB3S/CZ - Nexperia PCB footprint - Other - Other - WLCSP15_6-3-6
click to zoom
3D Models
PCMF3USB3S/CZ - Nexperia - 3D model - Other - WLCSP15_6-3-6
click to zoom

PCMF3USB3S/CZ Details

  • Manufacturer Part Number:

    PCMF3USB3S/CZ

  • Brand Name:

    Nexperia

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer Package Code:

    WLCSP15_6-3-6

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Nexperia

  • YTEOL:

    7

  • Capacitance:

    0.25 µF

  • DC Resistance-Max:

    3 Ω

  • Filter Type:

    DATA LINE FILTER

  • Height:

    0.6 mm

  • Insertion Loss-Max:

    -38 dB

  • Length:

    2.42 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    3

  • Number of Terminals:

    15

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Rated Voltage:

    5 V

  • Screening Level:

    IEC 61000-4-2,4-5; IEC-60134

  • Width:

    1.22 mm

PCMF3USB3S/CZ Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from noise sources. Use a common mode filter layout guideline for optimal performance.
  • The PCMF3USB3S/CZ has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and use ESD-protective packaging. Additionally, consider adding external ESD protection devices if the application requires it.
  • The PCMF3USB3S/CZ supports cable lengths up to 3 meters, but this can vary depending on the specific application and cable quality. It's recommended to test the device with the specific cable and application to ensure compliance with USB 3.2 Gen 2 specifications.
  • The PCMF3USB3S/CZ is a USB 3.2 Gen 2 device, but it can be configured for USB 2.0 or USB 1.1 operation by using the USB_CFG pins to select the desired mode. Refer to the datasheet for specific configuration details.
  • The power consumption of the PCMF3USB3S/CZ varies depending on the mode of operation. In USB 3.2 Gen 2 mode, the typical power consumption is around 150 mA. In USB 2.0 mode, it's around 50 mA, and in suspend mode, it's around 10 μA. Refer to the datasheet for detailed power consumption specifications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PCMF3USB3S/CZ Overview

Use the download button to access the PCMF3USB3S/CZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PCMF3, or try a keyword search, such as Data Line Filters

About Nexperia

Nexperia is a leading global player in the semiconductor industry. Specializing in essential electronic components, Nexperia offers a diverse range of products including discrete components, MOSFETs, logic ICs, and analog ICs. These components are integral to a multitude of applications across automotive, industrial, consumer electronics, and computing sectors, where reliability, performance, and efficiency are paramount.
