PCMF3USB3SZ - Nexperia

Description: PCMFxUSB3S - Common-mode EMI filter for differential channels with integrated ESD protection

Download PCMF3USB3SZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

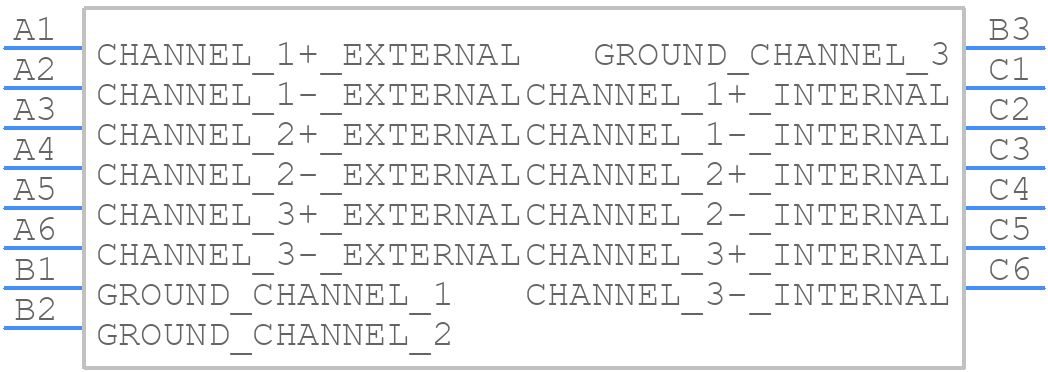

Symbol
PCMF3USB3SZ - Nexperia - PCB symbol
click to zoom
PCB Footprints
PCMF3USB3SZ - Nexperia PCB footprint - Other - Other - WLCSP15_6-3-6
click to zoom
3D Models
PCMF3USB3SZ - Nexperia - 3D model - Other - WLCSP15_6-3-6
click to zoom

PCMF3USB3SZ Details

  • Manufacturer Part Number:

    PCMF3USB3SZ

  • Brand Name:

    Nexperia

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer Package Code:

    WLCSP15_6-3-6

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Nexperia

  • YTEOL:

    7.39

  • Capacitance:

    0.25 µF

  • DC Resistance-Max:

    3 Ω

  • Filter Type:

    DATA LINE FILTER

  • Height:

    0.6 mm

  • Insertion Loss-Max:

    -38 dB

  • Length:

    2.42 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    3

  • Number of Terminals:

    15

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Rated Voltage:

    5 V

  • Screening Level:

    IEC 61000-4-2,4-5; IEC-60134

  • Width:

    1.22 mm

PCMF3USB3SZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the PCMF3USB3SZ involves keeping the signal traces short and direct, using a solid ground plane, and placing the device close to the USB connector. Additionally, it's recommended to use a common mode filter on the USB data lines to reduce EMI.
  • The PCMF3USB3SZ requires a 3.3V power supply and a 0.1uF decoupling capacitor between VCC and GND. Ensure that the power supply is stable and noise-free, and that the decoupling capacitor is placed close to the device.
  • The PCMF3USB3SZ is rated for operation from -40°C to 85°C. However, it's recommended to operate the device within a temperature range of 0°C to 70°C for optimal performance and reliability.
  • Yes, the PCMF3USB3SZ is designed for high-speed USB 3.0 applications and can support data transfer rates up to 5 Gbps.
  • To troubleshoot issues with the PCMF3USB3SZ, check the power supply voltage, decoupling capacitor, and PCB layout. Use an oscilloscope to verify the signal integrity and check for any signs of signal degradation or noise. Consult the datasheet and application notes for more information.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PCMF3USB3SZ Overview

Use the download button to access the PCMF3USB3SZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PCMF3, or try a keyword search, such as Data Line Filters

About Nexperia

Nexperia is a leading global player in the semiconductor industry. Specializing in essential electronic components, Nexperia offers a diverse range of products including discrete components, MOSFETs, logic ICs, and analog ICs. These components are integral to a multitude of applications across automotive, industrial, consumer electronics, and computing sectors, where reliability, performance, and efficiency are paramount.
