PCN1-S5-D12-M-TR - CUI Inc.

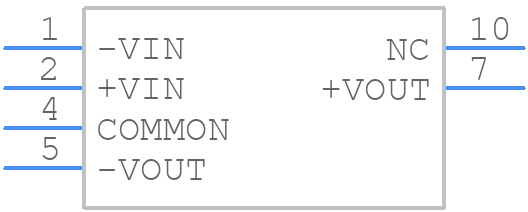

PCN1-S5-D12-M-TR Details

• Manufacturer Part Number:

  PCN1-S5-D12-M-TR

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Transferred

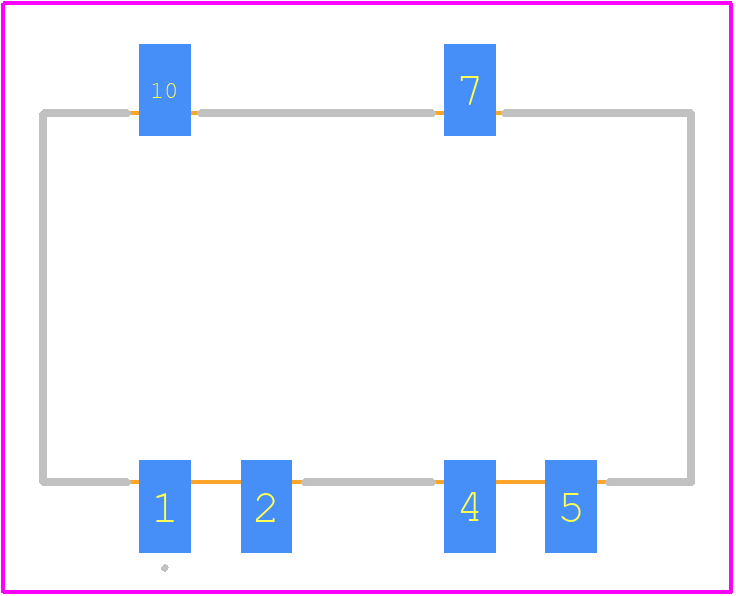

• Package Description:

  SMT-10/6

• ECCN Code:

  EAR99

• Date Of Intro:

  2018-06-13

• Manufacturer:

  CUI Inc

• YTEOL:

  6

• Analog IC - Other Type:

  DC-DC UNREGULATED POWER SUPPLY MODULE

• Approvals:

  EN

• Efficiency (Main Output):

  78%

• Input Voltage-Max:

  5.5 V

• Input Voltage-Min:

  4.5 V

• Input Voltage-Nom:

  5 V

• JESD-30 Code:

  R-PDMA-G6

• Length:

  16.2 mm

• Line Regulation-Max:

  1.2%

• Load Regulation-Max:

  10%

• Number of Functions:

  1

• Number of Outputs:

  2

• Number of Terminals:

  6

• Operating Temperature-Max:

  100 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  0.042 A

• Output Voltage-Max:

  12.36 V

• Output Voltage-Min:

  11.64 V

• Output Voltage-Nom:

  12 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DMA

• Package Shape:

  RECTANGULAR

• Package Style:

  MICROELECTRONIC ASSEMBLY

• Packing Method:

  TR, 13 INCH

• Protections:

  SHORT CIRCUIT

• Ripple Voltage (Main Out):

  0.0265125 Vrms

• Seated Height-Max:

  7.95 mm

• Surface Mount:

  YES

• Technology:

  HYBRID

• Terminal Form:

  GULL WING

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Total Power Output-Max:

  1 W

• Trim/Adjustable Output:

  NO

• Width:

  9.2 mm
