PCN1-S5-S5-M-TR - CUI Inc.

Description: Isolated DC/DC Converters - SMD 1W 5Vin 5Vout SMT 200mA Iso UnReg TR

Download PCN1-S5-S5-M-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

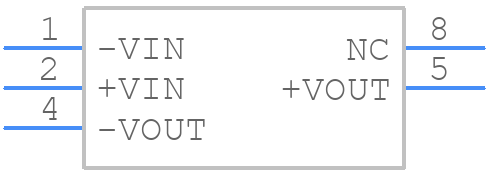

PCN1-S5-S5-M-TR - CUI Inc. - PCB symbol
click to zoom
PCB Footprints

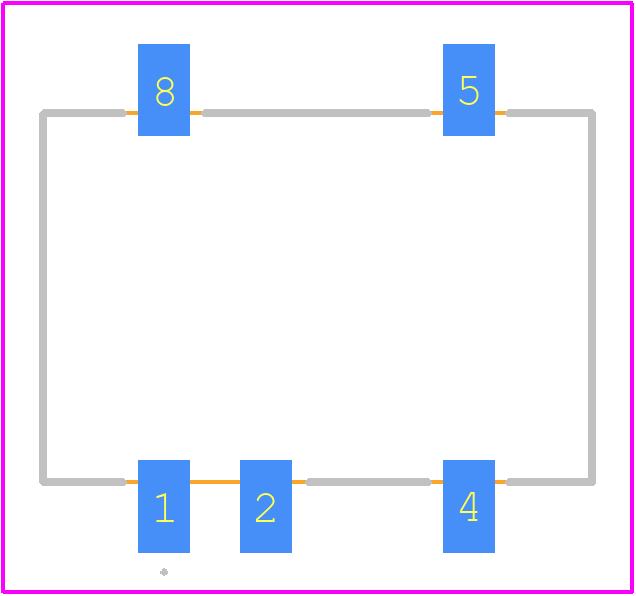

PCN1-S5-S5-M-TR - CUI Inc. PCB footprint - Other - Other - 8-SMD Module, 5 Leads_2024-6
click to zoom
3D Models
PCN1-S5-S5-M-TR - CUI Inc. - 3D model - Other - 8-SMD Module, 5 Leads_2024-6
click to zoom

PCN1-S5-S5-M-TR Details

  • Manufacturer Part Number:

    PCN1-S5-S5-M-TR

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    SMT-8/5

  • ECCN Code:

    EAR99

  • Date Of Intro:

    2018-06-13

  • Manufacturer:

    CUI Inc

  • YTEOL:

    6.2

  • Analog IC - Other Type:

    DC-DC UNREGULATED POWER SUPPLY MODULE

  • Approvals:

    EN

  • Efficiency (Main Output):

    79%

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-PDMA-G5

  • Length:

    13.7 mm

  • Line Regulation-Max:

    1.2%

  • Load Regulation-Max:

    10%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.2 A

  • Output Voltage-Max:

    5.15 V

  • Output Voltage-Min:

    4.85 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Protections:

    SHORT CIRCUIT

  • Ripple Voltage (Main Out):

    0.0265125 Vrms

  • Seated Height-Max:

    7.95 mm

  • Surface Mount:

    YES

  • Technology:

    HYBRID

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    1 W

  • Trim/Adjustable Output:

    NO

  • Width:

    9.2 mm

PCN1-S5-S5-M-TR Frequently Asked Questions (FAQs)

  • CUI recommends a PCB layout with a solid ground plane and thermal vias to dissipate heat. A minimum of 1 oz copper thickness is recommended. Additionally, a thermal interface material (TIM) with a thermal conductivity of 1 W/m-K or higher is suggested to improve heat transfer between the module and the heat sink.
  • CUI recommends following the recommended PCB mounting and screw torque specifications to ensure the module is securely fastened. Additionally, using a conformal coating and potting the module can help improve reliability in high-vibration environments.
  • CUI recommends following the recommended input and output filter capacitance values specified in the datasheet. Exceeding these values may affect the module's performance and stability.
  • Yes, the PCN1-S5-S5-M-TR can be used in a redundant or N+1 configuration. However, CUI recommends consulting with their application engineers to ensure proper design and implementation to avoid any potential issues.
  • The typical lead time for the PCN1-S5-S5-M-TR is 8-12 weeks, and the minimum order quantity (MOQ) is 100 pieces. However, these values may vary depending on the region and availability. It's recommended to check with CUI's sales team or authorized distributors for the most up-to-date information.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PCN1-S5-S5-M-TR Overview

Use the download button to access the PCN1-S5-S5-M-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PCN1-, or try a keyword search, such as Power Supply Modules
