PCN10-100P-2.54DS - Hirose

PCN10-100P-2.54DS Details

• Manufacturer Part Number:

  PCN10-100P-2.54DS

• Part Life Cycle Code:

  Obsolete

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.40

• Manufacturer:

  Hirose Electric Co Ltd

• YTEOL:

  0

• Additional Feature:

  STANDARDS: DIN 41612; IEC 603-2, POLARIZED

• Body Breadth:

  0.339 inch

• Body Depth:

  0.598 inch

• Body Length:

  5.501 inch

• Body/Shell Style:

  PLUG

• Connector Type:

  BOARD EURO CONNECTOR

• Contact Finish Mating:

  GOLD

• Contact Finish Termination:

  GOLD

• Contact Gender:

  MALE

• Contact Material:

  BRASS

• Contact Resistance:

  20 mΩ

• Contact Style:

  SQ PIN-SKT

• DIN Conformance:

  YES

• Dielectric Withstanding Voltage:

  1000VAC V

• Durability:

  500 Cycles

• Filter Feature:

  NO

• IEC Conformance:

  YES

• Insulation Resistance:

  1000000000000 Ω

• Insulator Color:

  GRAY

• Insulator Material:

  POLYBUTYLENE TEREPHTHALATE

• JESD-609 Code:

  e4

• MIL Conformance:

  NO

• Mating Contact Pitch:

  0.1 inch

• Mating Contact Row Spacing:

  0.1 inch

• Mating Information:

  MULTIPLE MATING PARTS AVAILABLE

• Mixed Contacts:

  NO

• Mounting Style:

  RIGHT ANGLE

• Mounting Type:

  BOARD

• Name of Rows Loaded:

  A,B

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  2

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -30 °C

• Option:

  GENERAL PURPOSE

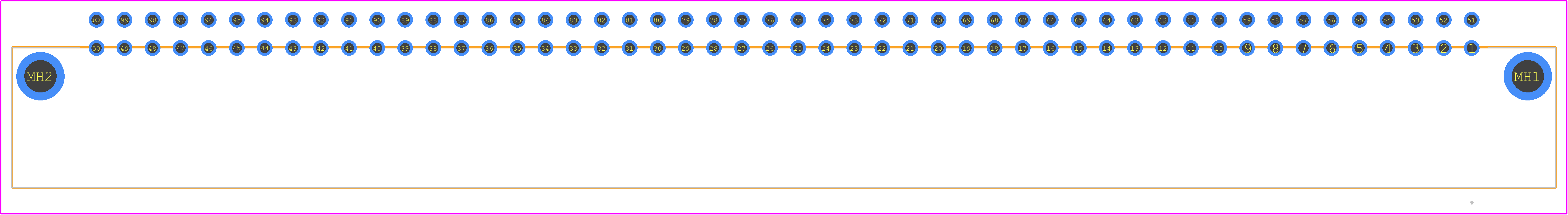

• PCB Contact Pattern:

  RECTANGULAR

• PCB Contact Row Spacing:

  2.54 mm

• Polarization Key:

  SHRD ENDS

• Rated Current (Signal):

  2 A

• Reference Standard:

  UL

• Terminal Length:

  0.049 inch

• Terminal Pitch:

  2.54 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  100

• UL Flammability Code:

  94V-0
