PCN10-32P-2.54DS(72) - Hirose

Description: DIN 41612 Connectors DIN 41612 HDR 32 POS 2.54mm Solder RA Th

Download PCN10-32P-2.54DS(72) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

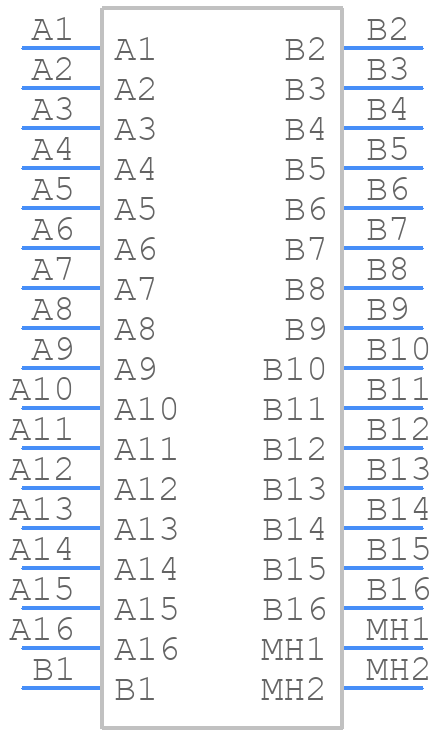

Symbol
PCN10-32P-2.54DS(72) - Hirose - PCB symbol
click to zoom

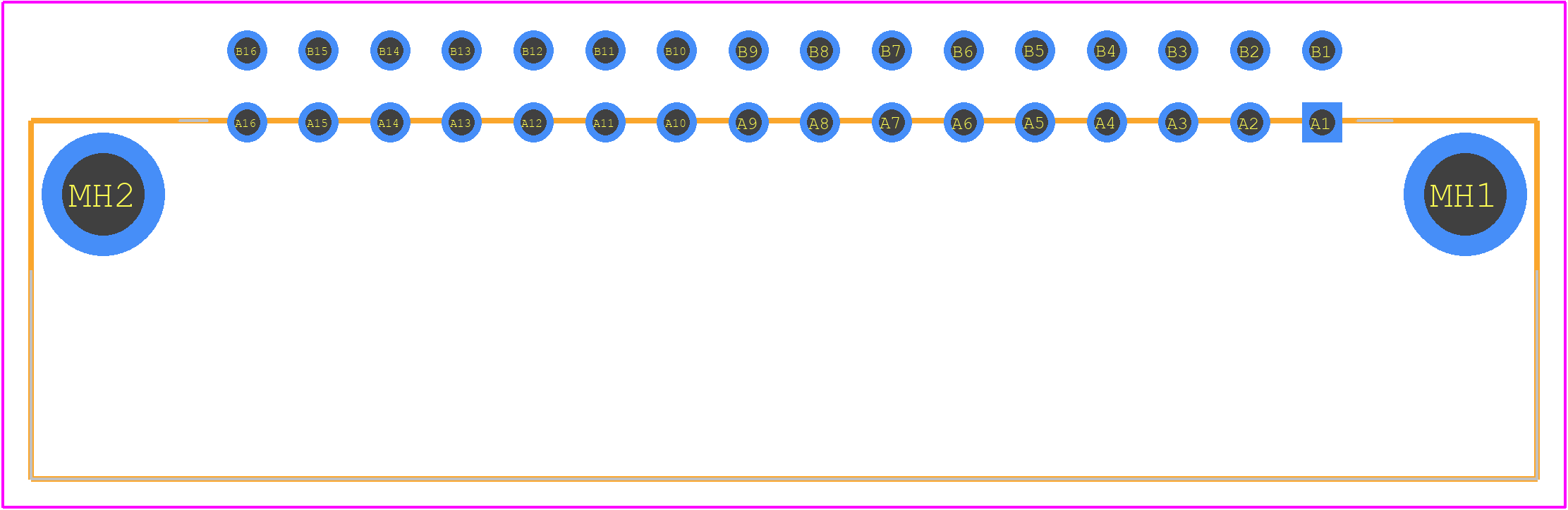

PCB Footprints
PCN10-32P-2.54DS(72) - Hirose PCB footprint - Other - Other - PCN10-32P-2.54DS(72)-2
click to zoom
3D Models
PCN10-32P-2.54DS(72) - Hirose - 3D model - Other - PCN10-32P-2.54DS(72)-2
click to zoom

PCN10-32P-2.54DS(72) Details

  • Manufacturer Part Number:

    PCN10-32P-2.54DS(72)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Indonesia

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    9

  • Connector Type:

    BOARD EURO CONNECTOR

PCN10-32P-2.54DS(72) Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5 N·m to 1.5 N·m, but it's recommended to consult the datasheet or contact Hirose Electric Co Ltd for specific guidance.
  • Yes, the PCN10-32P-2.54DS(72) connector is designed to withstand vibrations and is suitable for use in high-vibration applications, but it's recommended to consult the datasheet or contact Hirose Electric Co Ltd for specific guidance.
  • The maximum operating temperature for the PCN10-32P-2.54DS(72) connector is 125°C, but it's recommended to consult the datasheet or contact Hirose Electric Co Ltd for specific guidance.
  • Yes, the PCN10-32P-2.54DS(72) connector is compatible with lead-free soldering, but it's recommended to consult the datasheet or contact Hirose Electric Co Ltd for specific guidance.
  • The recommended mating cycle for the PCN10-32P-2.54DS(72) connector is 500 cycles, but it's recommended to consult the datasheet or contact Hirose Electric Co Ltd for specific guidance.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PCN10-32P-2.54DS(72) Overview

Use the download button to access the PCN10-32P-2.54DS(72) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PCN10, or try a keyword search, such as Headers and Edge Type Connectors
