PCN10-44P-2.54DS(72) - Hirose

Description: 44 Position Din Connector Header, Male Pins Gold Through Hole, Right Angle

Download PCN10-44P-2.54DS(72) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

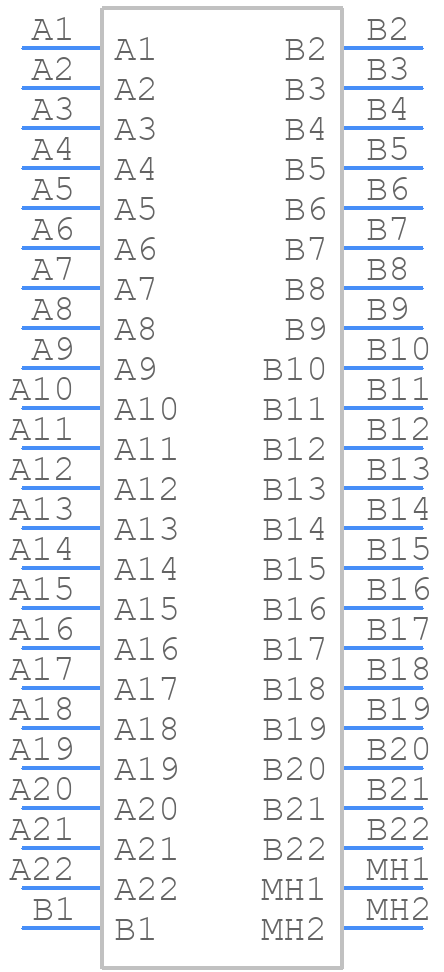

PCN10-44P-2.54DS(72) - Hirose - PCB symbol
click to zoom
PCB Footprints

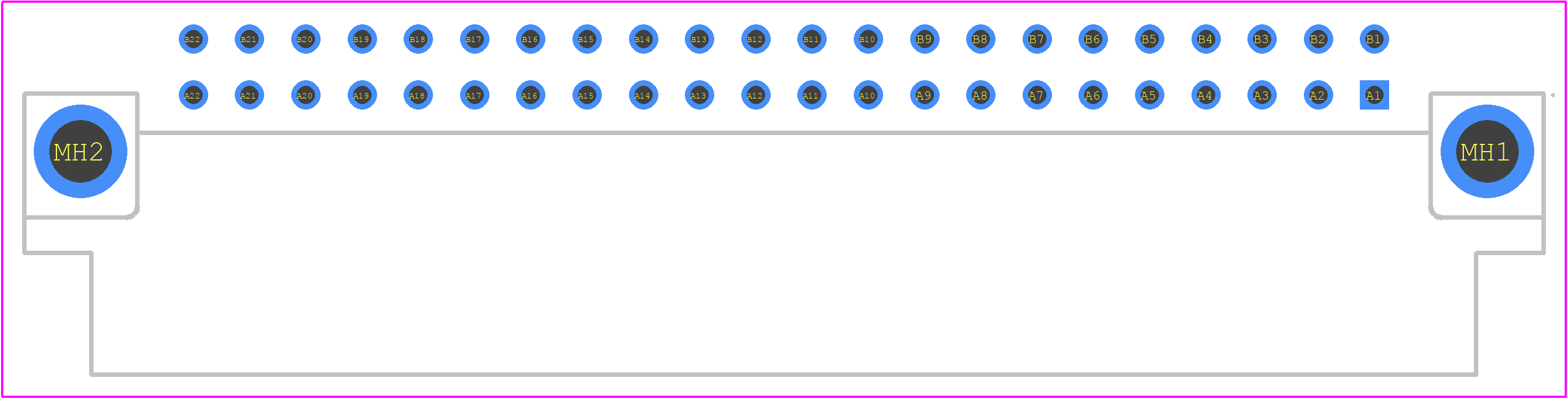

PCN10-44P-2.54DS(72) - Hirose PCB footprint - Other - Other - PCN10-44P-2.54DS(72)-2
click to zoom
3D Models
PCN10-44P-2.54DS(72) - Hirose - 3D model - Other - PCN10-44P-2.54DS(72)-2
click to zoom

PCN10-44P-2.54DS(72) Details

  • Manufacturer Part Number:

    PCN10-44P-2.54DS(72)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Indonesia

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    9

  • Connector Type:

    BOARD EURO CONNECTOR

PCN10-44P-2.54DS(72) Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5-1.5 N·m (5-13 in-lbs) for the screws on the PCN10-44P-2.54DS(72) connector.
  • Yes, the PCN10-44P-2.54DS(72) connector is designed to withstand vibrations and can be used in high-vibration applications. However, it's recommended to follow the manufacturer's guidelines for mounting and screw torque to ensure reliable connections.
  • Yes, the PCN10-44P-2.54DS(72) connector is compatible with lead-free soldering processes and can withstand the higher temperatures required for lead-free soldering.
  • The maximum operating temperature range for the PCN10-44P-2.54DS(72) connector is -40°C to 105°C (-40°F to 221°F).
  • The PCN10-44P-2.54DS(72) connector has a moisture-resistant design, but it's not fully waterproof. It can be used in humid environments, but it's not recommended for submerged or wet applications.
