The recommended torque for the screw terminals is 0.5 N·m to 1.5 N·m, as specified in the Hirose Electric Co Ltd's application notes.
Yes, the PCN10A-50P-2.54DS(72) is designed to withstand vibrations up to 10G, making it suitable for use in high-vibration environments.
The PCN10A-50P-2.54DS(72) is rated for operation in temperatures ranging from -40°C to 105°C and humidity up to 90%, making it suitable for use in harsh environments.
The maximum current rating for each pin is 1A, as specified in the datasheet.
Yes, the PCN10A-50P-2.54DS(72) is designed for high-speed data transmission and is suitable for use in applications up to 3.0 Gbps.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PCN10A-50P-2.54DS(72) Overview

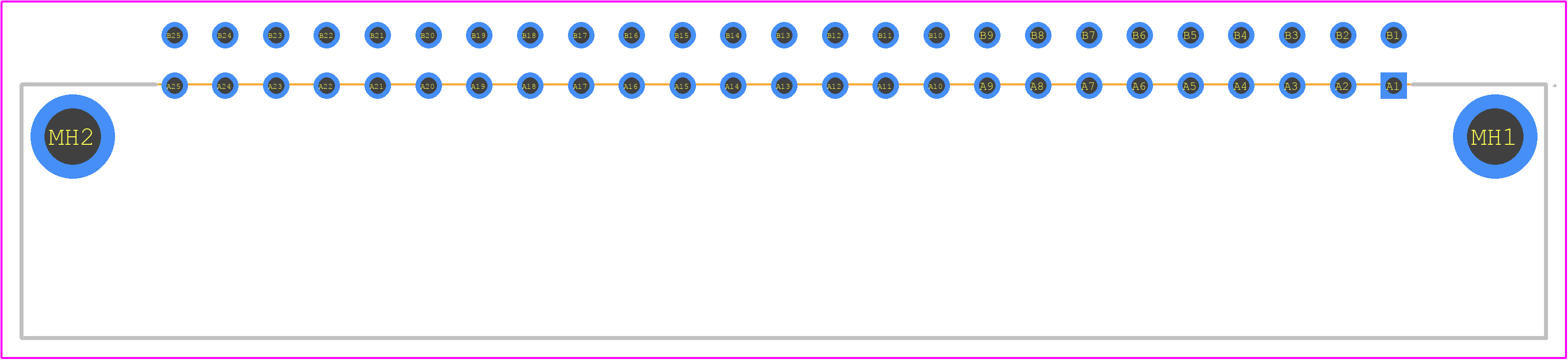

Use the download button to access the PCN10A-50P-2.54DS(72) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PCN10,
or try a keyword search, such as Headers and Edge Type Connectors
