PCN10C-50S-2.54DS(72) - Hirose

Description: DIN 41612 Connectors DIN RCPT 50P DUAL R/A

Download PCN10C-50S-2.54DS(72) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

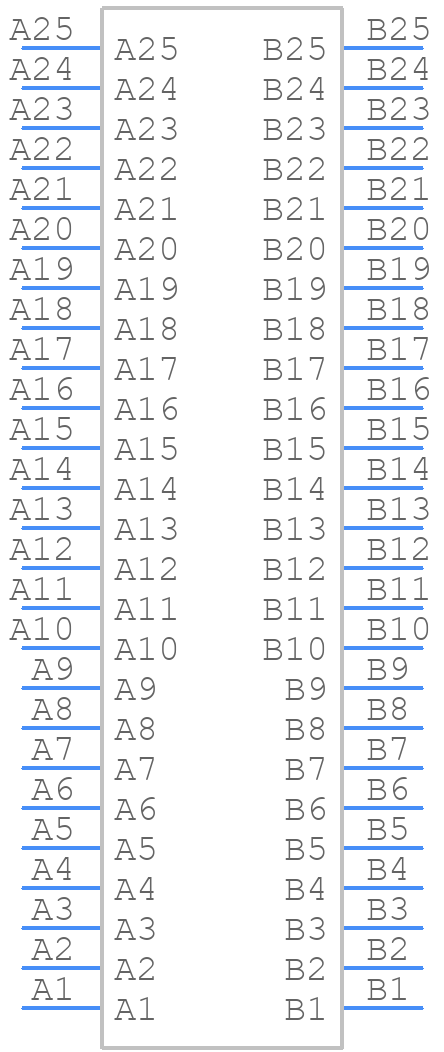

PCN10C-50S-2.54DS(72) - Hirose - PCB symbol
click to zoom
PCB Footprints

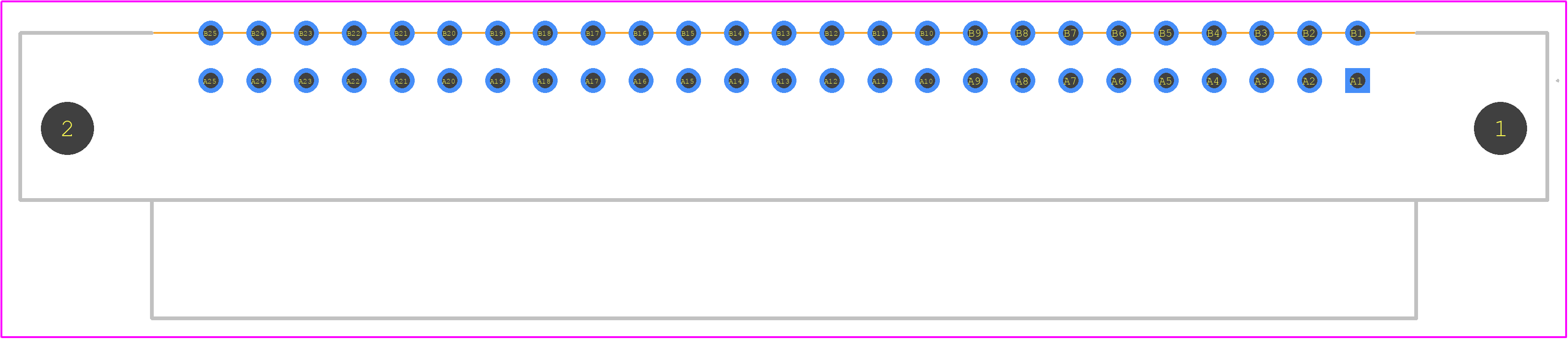

PCN10C-50S-2.54DS(72) - Hirose PCB footprint - Other - Other - PCN10C-50S-2.54DS(72)-1
click to zoom
3D Models
PCN10C-50S-2.54DS(72) - Hirose - 3D model - Other - PCN10C-50S-2.54DS(72)-1
click to zoom

PCN10C-50S-2.54DS(72) Details

  • Manufacturer Part Number:

    PCN10C-50S-2.54DS(72)

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Indonesia

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    8

  • Additional Feature:

    STANDARDS: DIN 41612, IEC 603-2; POLARIZED

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    BOARD EURO CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    YES

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    50

  • UL Flammability Code:

    94V-0

PCN10C-50S-2.54DS(72) Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5 N·m to 1.5 N·m, but it's recommended to consult the datasheet or contact Hirose Electric Co Ltd for specific guidance.
  • Yes, the PCN10C-50S-2.54DS(72) connector is designed to withstand vibrations and is suitable for use in high-vibration applications, but it's recommended to consult the datasheet and perform thorough testing to ensure reliability.
  • The maximum operating temperature for the PCN10C-50S-2.54DS(72) connector is 125°C, but it's recommended to consult the datasheet for specific temperature ratings and derating information.
  • The PCN10C-50S-2.54DS(72) connector is designed to be resistant to harsh environments, but it's recommended to consult the datasheet and perform thorough testing to ensure reliability in specific environmental conditions.
  • The mating cycle life of the PCN10C-50S-2.54DS(72) connector is typically 500-1000 cycles, but it's recommended to consult the datasheet or contact Hirose Electric Co Ltd for specific guidance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PCN10C-50S-2.54DS(72) Overview

Use the download button to access the PCN10C-50S-2.54DS(72) schematic symbol, PCB footprint, and 3D model.
