PCN10MA-144P-2.54DS(72) - Hirose

Description: DIN 41612 Connectors 144P R/A PIN HDR T/H POLAR KEYWAY

Download PCN10MA-144P-2.54DS(72) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PCN10MA-144P-2.54DS(72) - Hirose - PCB symbol
click to zoom
PCB Footprints

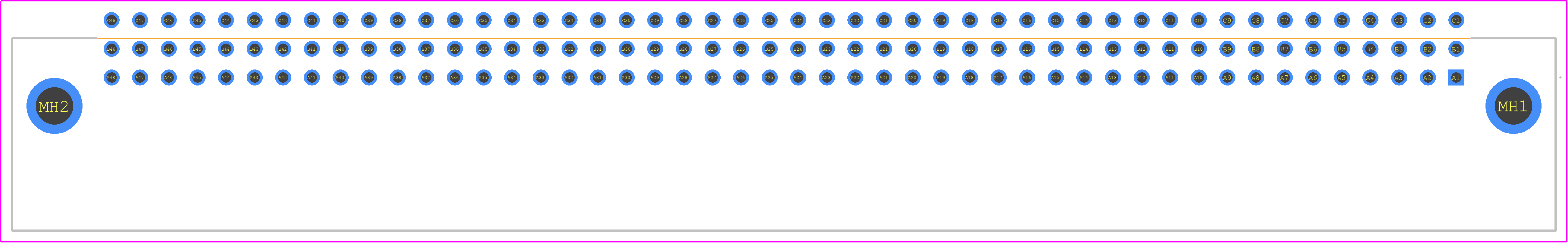

PCN10MA-144P-2.54DS(72) - Hirose PCB footprint - Other - Other - PCN10MA-144P-2.54DS(72)-1
click to zoom
3D Models
PCN10MA-144P-2.54DS(72) - Hirose - 3D model - Other - PCN10MA-144P-2.54DS(72)-1
click to zoom

PCN10MA-144P-2.54DS(72) Details

  • Manufacturer Part Number:

    PCN10MA-144P-2.54DS(72)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Indonesia

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    0

  • Connector Type:

    BOARD EURO CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Material:

    NOT SPECIFIED

  • JESD-609 Code:

    e4

PCN10MA-144P-2.54DS(72) Frequently Asked Questions (FAQs)

  • The recommended torque for the screw locks is 0.5 N·m to 1.5 N·m, as specified in the Hirose Electric Co Ltd's application notes.
  • Yes, the PCN10MA-144P-2.54DS(72) connector is designed to withstand vibrations up to 10G, making it suitable for high-vibration applications.
  • The maximum operating temperature range for the PCN10MA-144P-2.54DS(72) connector is -40°C to 105°C, as specified in the datasheet.
  • Yes, the PCN10MA-144P-2.54DS(72) connector is compatible with lead-free soldering processes, and Hirose Electric Co Ltd recommends using a soldering temperature of 260°C or lower.
  • The recommended mating cycle for the PCN10MA-144P-2.54DS(72) connector is 500 cycles, as specified in the datasheet.
