PCN10MC-96S-2.54DSA(72) - Hirose

Description: 96 Position Din Connector Receptacle, Female Sockets Gold Through Hole, 2A , 300VAC , -55°C ~ 85°C

Download PCN10MC-96S-2.54DSA(72) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PCN10MC-96S-2.54DSA(72) - Hirose - PCB symbol
click to zoom
PCB Footprints

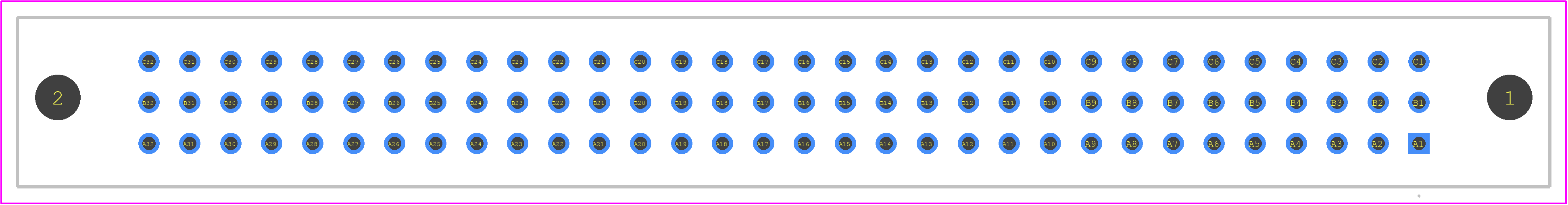

PCN10MC-96S-2.54DSA(72) - Hirose PCB footprint - Other - Other - PCN10MC-96S-2.54DSA(72)-1
click to zoom
3D Models
PCN10MC-96S-2.54DSA(72) - Hirose - 3D model - Other - PCN10MC-96S-2.54DSA(72)-1
click to zoom

PCN10MC-96S-2.54DSA(72) Details

  • Manufacturer Part Number:

    PCN10MC-96S-2.54DSA(72)

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Indonesia

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Hirose Electric Co Ltd

  • Connector Type:

    BOARD EURO CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Material:

    NOT SPECIFIED

  • JESD-609 Code:

    e4

PCN10MC-96S-2.54DSA(72) Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5 N·m to 1.5 N·m (0.36 lbf·in to 1.06 lbf·in) for the screw locks on the PCN10MC-96S-2.54DSA(72) connector.
  • Yes, the PCN10MC-96S-2.54DSA(72) connector is designed to withstand high-vibration environments, with a vibration resistance of 10-2000 Hz, 10 G acceleration.
  • The PCN10MC-96S-2.54DSA(72) connector is rated for operating temperatures of -40°C to 105°C and humidity of 90% RH max. However, it's recommended to consult with Hirose Electric Co Ltd or a qualified engineer for specific application requirements.
  • The PCN10MC-96S-2.54DSA(72) connector has a mating cycle life of 500 cycles minimum.
  • Yes, Hirose Electric Co Ltd recommends following their PCB layout guidelines, including a minimum PCB thickness of 1.6 mm, and ensuring proper clearance and spacing around the connector to prevent interference and ensure reliable operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PCN10MC-96S-2.54DSA(72) Overview

Use the download button to access the PCN10MC-96S-2.54DSA(72) schematic symbol, PCB footprint, and 3D model.
