PCN12A-44P-2.54DS(71) - Hirose

Description: DIN 41612 Connectors 44P R/A PLUG HDR T/H ORIGINAL TYPE 2 ROW

Download PCN12A-44P-2.54DS(71) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

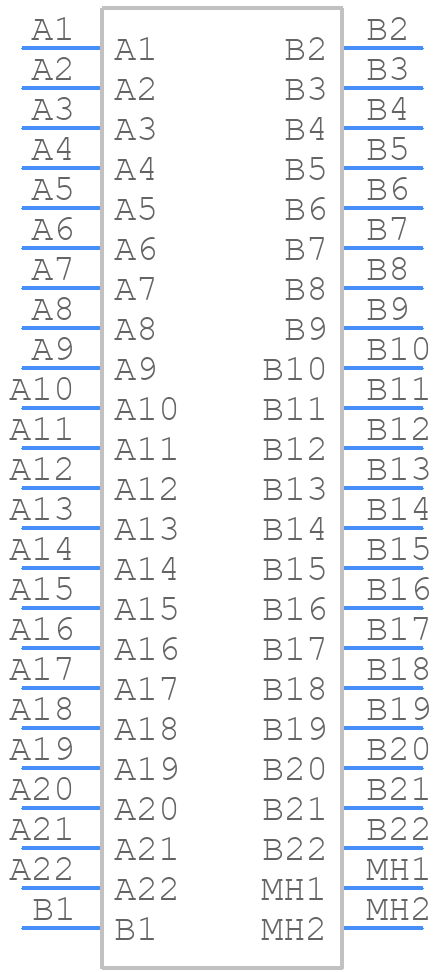

Symbol
PCN12A-44P-2.54DS(71) - Hirose - PCB symbol
click to zoom

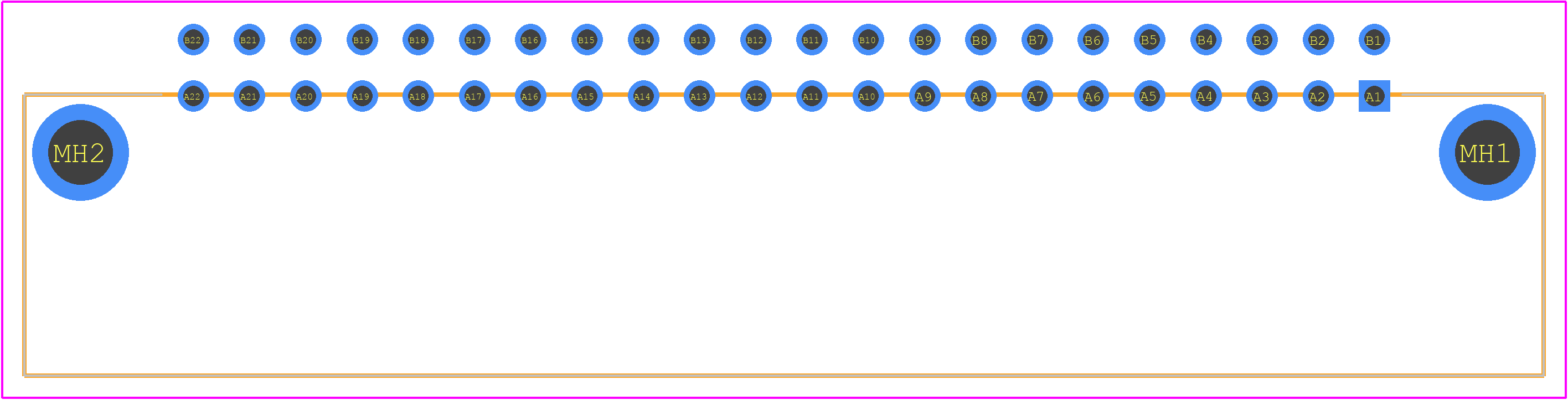

PCB Footprints
PCN12A-44P-2.54DS(71) - Hirose PCB footprint - Other - Other - PCN12A-44P-2.54DS(71)-1
click to zoom
3D Models
PCN12A-44P-2.54DS(71) - Hirose - 3D model - Other - PCN12A-44P-2.54DS(71)-1
click to zoom

PCN12A-44P-2.54DS(71) Details

  • Manufacturer Part Number:

    PCN12A-44P-2.54DS(71)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Country Of Origin:

    Indonesia

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    3

  • Connector Type:

    BOARD EURO CONNECTOR

PCN12A-44P-2.54DS(71) Frequently Asked Questions (FAQs)

  • The recommended torque for the screw locks is 0.5 N·m to 1.5 N·m (0.36 lbf·in to 1.06 lbf·in) according to Hirose's application notes.
  • Yes, the PCN12A-44P-2.54DS(71) connector is designed to withstand vibrations up to 10G (10 Hz to 2000 Hz) according to Hirose's reliability testing.
  • The maximum operating temperature range for the PCN12A-44P-2.54DS(71) connector is -40°C to 105°C (-40°F to 221°F) according to Hirose's datasheet.
  • Yes, the PCN12A-44P-2.54DS(71) connector is compatible with lead-free soldering processes, such as SAC305, and meets the requirements of the RoHS directive.
  • The mating cycle life of the PCN12A-44P-2.54DS(71) connector is 500 cycles minimum according to Hirose's reliability testing.
