The recommended torque for the screw locks is 0.5 N·m to 1.5 N·m, as specified in the Hirose Electric Co Ltd's application notes.
Yes, the PCN12EA-16P-2.54DS(71) is designed to withstand vibrations up to 10G (10-2000Hz) and is suitable for use in high-vibration applications.
The operating temperature range for the PCN12EA-16P-2.54DS(71) is -40°C to 105°C, as specified in the datasheet.
Yes, the PCN12EA-16P-2.54DS(71) is compatible with lead-free soldering and is RoHS compliant.
The mating cycle rating for the PCN12EA-16P-2.54DS(71) is 500 cycles, as specified in the datasheet.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PCN12EA-16P-2.54DS(71) Overview

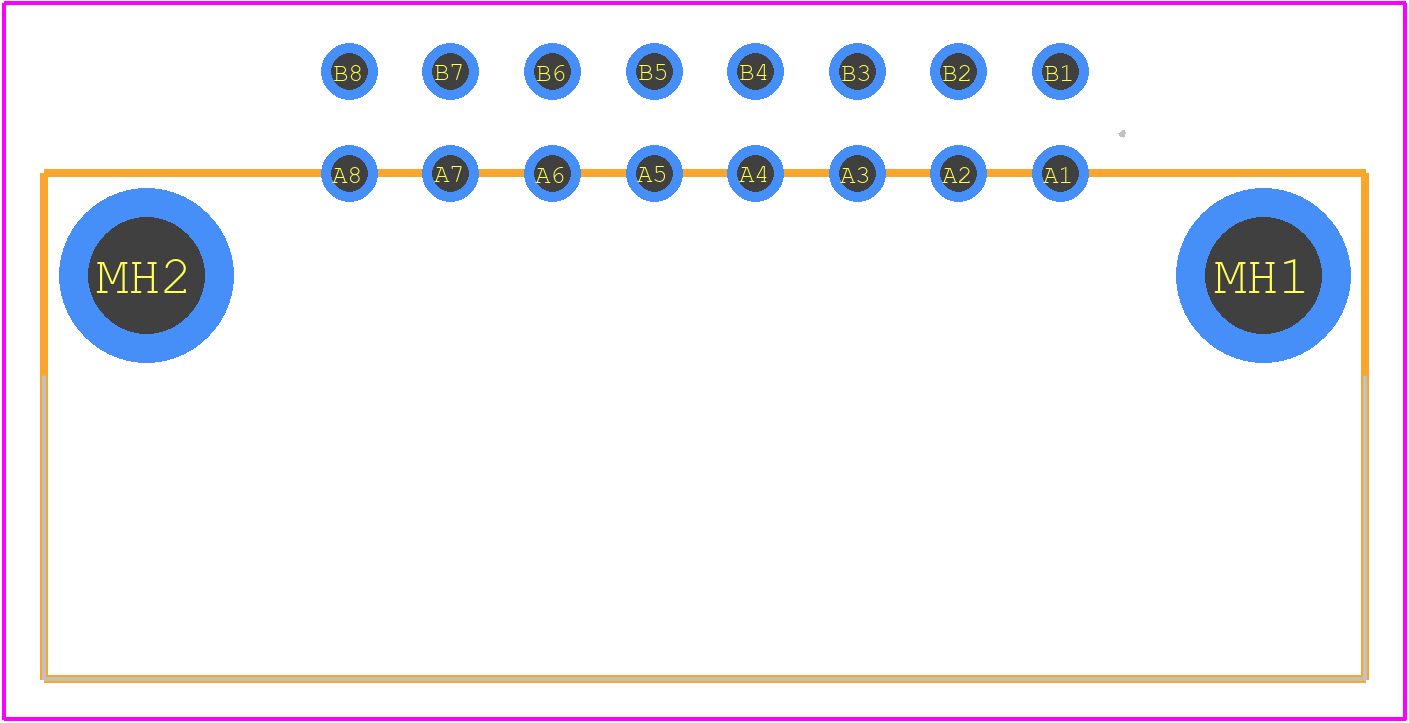

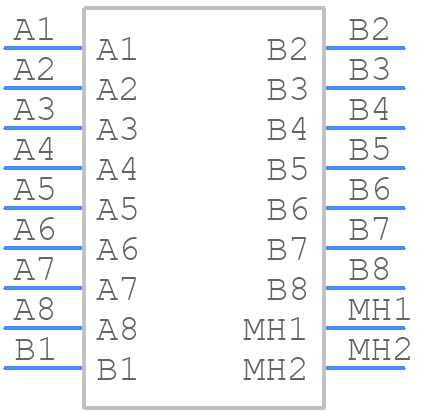

Use the download button to access the PCN12EA-16P-2.54DS(71) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PCN12,
or try a keyword search, such as Headers and Edge Type Connectors
