Part Image

PCN13-96S-2.54DS(71) - Hirose

Description: DIN 41612 Connectors DIN RCPT 96P 3RW R/A

Download PCN13-96S-2.54DS(71) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PCN13-96S-2.54DS(71) - Hirose - PCB symbol
click to zoom

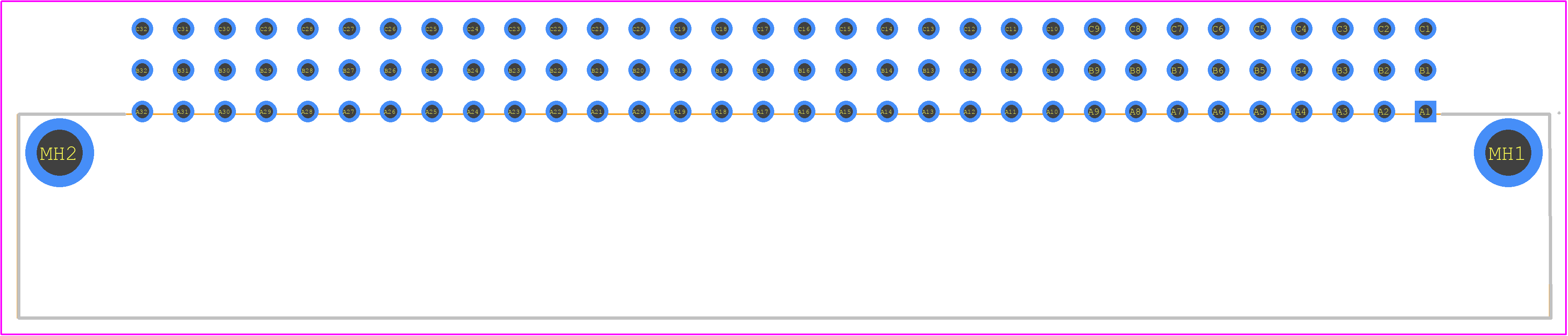

PCB Footprints
PCN13-96S-2.54DS(71) - Hirose PCB footprint - Other - Other - PCN13-96S-2.54DS(71)-2
click to zoom
3D Models
PCN13-96S-2.54DS(71) - Hirose - 3D model - Other - PCN13-96S-2.54DS(71)-2
click to zoom

PCN13-96S-2.54DS(71) Details

  • Manufacturer Part Number:

    PCN13-96S-2.54DS(71)

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Indonesia

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    0

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    BOARD EURO CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    YES

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    3

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    96

  • UL Flammability Code:

    94V-0

PCN13-96S-2.54DS(71) Frequently Asked Questions (FAQs)

  • The recommended torque for the screw locks is 0.5 N·m to 1.5 N·m, as specified in the Hirose Electric Co Ltd's application notes.
  • Yes, the PCN13-96S-2.54DS(71) is designed to withstand vibrations up to 10G (10-2000Hz) and is suitable for use in high-vibration environments, such as in industrial or automotive applications.
  • Yes, the PCN13-96S-2.54DS(71) has a operating temperature range of -40°C to 105°C and is designed to withstand harsh environments, including outdoor use and high-temperature areas.
  • The PCN13-96S-2.54DS(71) has a mating cycle life of 500 cycles, as specified in the Hirose Electric Co Ltd's datasheet.
  • Yes, the PCN13-96S-2.54DS(71) is designed to be used with a cable assembly, and Hirose Electric Co Ltd provides guidelines for cable assembly design and manufacturing in their application notes.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PCN13-96S-2.54DS(71) Overview

Use the download button to access the PCN13-96S-2.54DS(71) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PCN13, or try a keyword search, such as Headers and Edge Type Connectors
