PCN13-96S-2.54DSA(71) - Hirose

Description: DIN 41612 Connectors DIN RCPT 96P 3RW STR

Download PCN13-96S-2.54DSA(71) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PCN13-96S-2.54DSA(71) - Hirose - PCB symbol
click to zoom
PCB Footprints

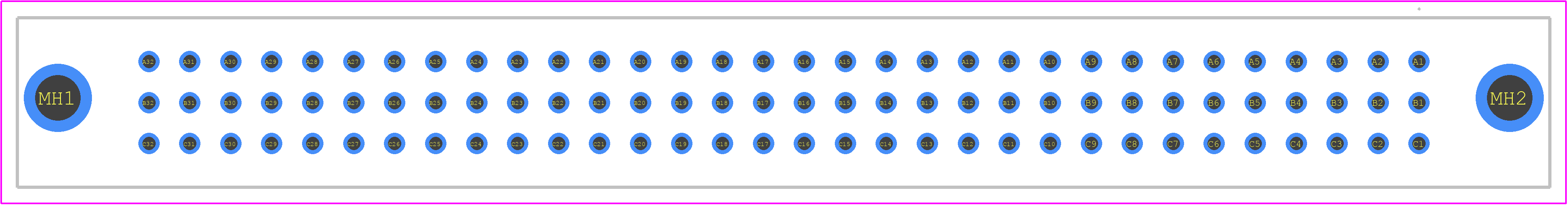

PCN13-96S-2.54DSA(71) - Hirose PCB footprint - Other - Other - PCN13-96S-2.54DSA(71)-1
click to zoom
3D Models
PCN13-96S-2.54DSA(71) - Hirose - 3D model - Other - PCN13-96S-2.54DSA(71)-1
click to zoom

PCN13-96S-2.54DSA(71) Details

  • Manufacturer Part Number:

    PCN13-96S-2.54DSA(71)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Country Of Origin:

    Indonesia

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    3

  • Connector Type:

    BOARD EURO CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Material:

    NOT SPECIFIED

  • JESD-609 Code:

    e4

PCN13-96S-2.54DSA(71) Frequently Asked Questions (FAQs)

  • The recommended torque for the screw locks is 0.5 N·m to 1.5 N·m, as specified in the manufacturer's application notes.
  • Yes, the PCN13-96S-2.54DSA(71) is designed to withstand vibrations and is suitable for use in high-vibration environments, such as in automotive or industrial applications.
  • The maximum operating temperature for the PCN13-96S-2.54DSA(71) is 125°C, as specified in the datasheet.
  • Yes, the PCN13-96S-2.54DSA(71) is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.
  • The mating cycle rating for the PCN13-96S-2.54DSA(71) is 500 cycles, as specified in the manufacturer's reliability data.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PCN13-96S-2.54DSA(71) Overview

Use the download button to access the PCN13-96S-2.54DSA(71) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PCN13, or try a keyword search, such as Headers and Edge Type Connectors

Parts related to PCN13-96S-2.54DSA(71)
