PCR-E20MD+ - Honda Connectors

Description: Conn High Density M 20 POS 2.54mm Solder ST Thru-Hole 20 Terminal 1 Port

Download PCR-E20MD+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

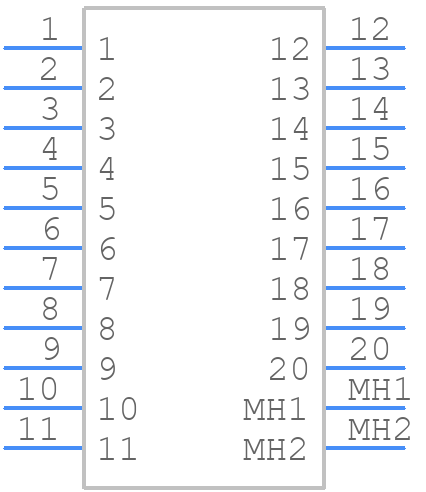

PCR-E20MD+ - Honda Connectors - PCB symbol
click to zoom
PCB Footprints

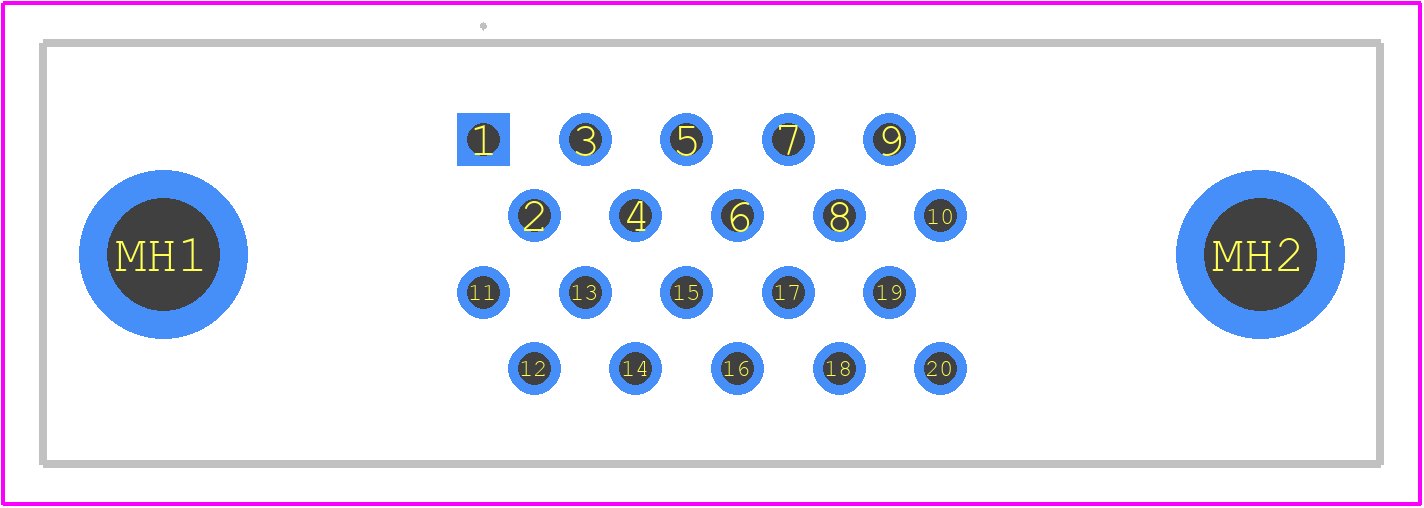

PCR-E20MD+ - Honda Connectors PCB footprint - Other - Other - PCR-E20MD+-1
click to zoom
3D Models
PCR-E20MD+ - Honda Connectors - 3D model - Other - PCR-E20MD+-1
click to zoom

PCR-E20MD+ Details

  • Manufacturer Part Number:

    PCR-E20MD+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Honda Tsushin Kogyo Co Ltd

  • Additional Feature:

    EMI FILTERED

  • Connector Type:

    SCSI CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    YES

  • IEC Conformance:

    NO

  • Insulator Material:

    GLASS FILLED POLYBUTYLENE TEREPHTHALATE

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD AND PANEL

  • Option:

    GENERAL PURPOSE

  • Shell Finish:

    NICKEL

  • Shell Material:

    ZINC ALLOY

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    20

  • UL Flammability Code:

    94V-0
