PCR-E50LMDA+ - HTK

Description: Right-angle through hole type male

Download PCR-E50LMDA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PCR-E50LMDA+ - HTK - PCB symbol
click to zoom
PCB Footprints

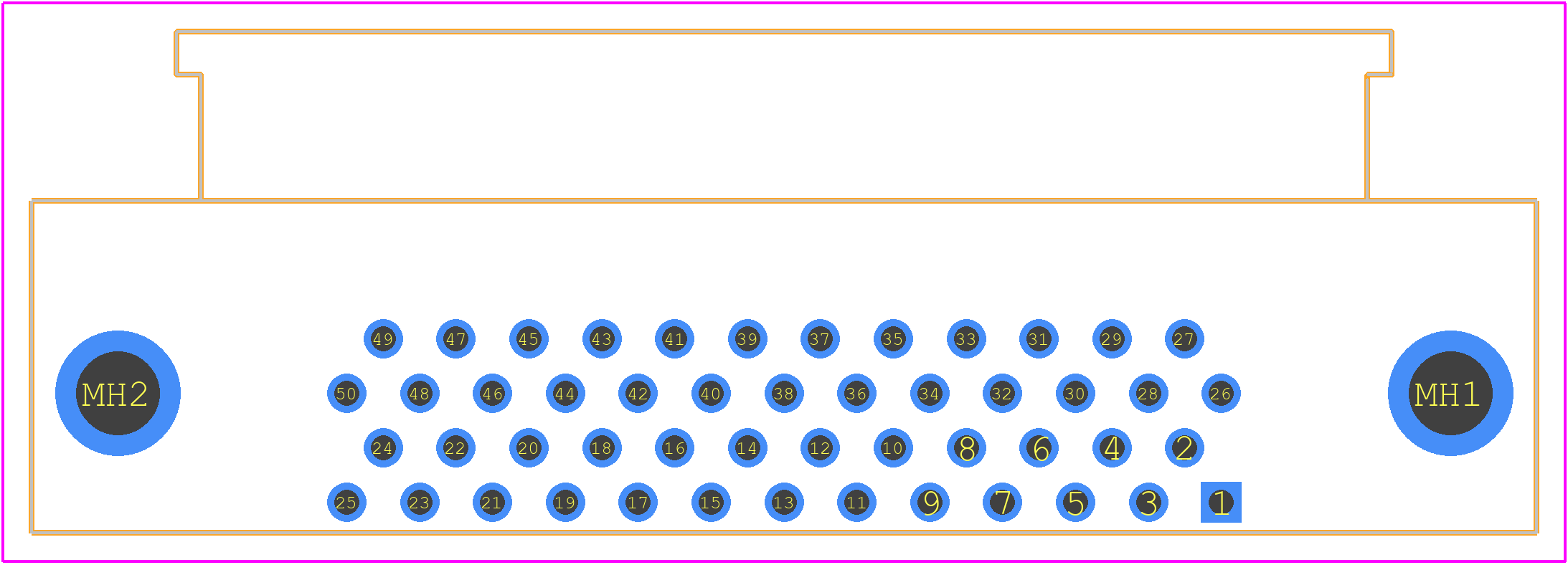

PCR-E50LMDA+ - HTK PCB footprint - Other - Other - PCR-E50LMDA+-1
click to zoom

PCR-E50LMDA+ Details

  • Manufacturer Part Number:

    PCR-E50LMDA+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Honda Tsushin Kogyo Co Ltd

  • Body Breadth:

    0.413 inch

  • Body Depth:

    0.457 inch

  • Body Length:

    2.065 inch

  • Connector Type:

    TELECOM AND DATACOM CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    35 mΩ

  • Contact Style:

    CENTRONIC

  • DIN Conformance:

    NO

  • Dielectric Withstanding Voltage:

    1100VAC V

  • Empty Shell:

    NO

  • Filter Feature:

    YES

  • IEC Conformance:

    NO

  • Insulation Resistance:

    1000000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    GLASS FILLED POLYBUTYLENE TEREPHTHALATE

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.05 inch

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD AND PANEL

  • Number Of PCB Rows:

    4

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    STAGGERED

  • PCB Contact Row Spacing:

    1.905 mm

  • Plating Thickness:

    8u inch

  • Rated Current (Signal):

    1 A

  • Reference Standard:

    UL

  • Shell Finish:

    COPPER/NICKEL

  • Shell Material:

    ZINC ALLOY

  • Terminal Length:

    0.134 inch

  • Terminal Pitch:

    1.27 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    50

  • UL Flammability Code:

    94V-0

PCR-E50LMDA+ Frequently Asked Questions (FAQs)

  • The recommended PCB layout and land pattern can be found in the Honda Tsushin Kogyo Co Ltd's application note or design guide, which provides detailed information on pad size, spacing, and layout considerations to ensure reliable soldering and operation.
  • To ensure proper driving and control of the PCR-E50LMDA+, follow the recommended drive circuit and control signal specifications outlined in the datasheet. Additionally, consider using a buffer or driver IC to ensure the relay coil is properly energized and de-energized.
  • The PCR-E50LMDA+ has a maximum operating temperature of 85°C. To ensure reliable operation, provide adequate heat sinking and thermal management, such as using a heat sink or thermal pad, to keep the relay temperature within the specified range.
  • While the PCR-E50LMDA+ is a robust relay, it may not be suitable for extreme vibration or shock environments. Consult with Honda Tsushin Kogyo Co Ltd or a qualified engineer to determine the relay's suitability for your specific application and to discuss potential modifications or additional design considerations.
