Bourns recommends a symmetrical PCB layout with a solid ground plane to minimize electromagnetic interference (EMI) and ensure optimal performance. A minimum of 2 oz copper thickness is recommended for the PCB.
Bourns recommends using a soldering iron with a temperature range of 250°C to 260°C and a solder with a melting point of 180°C to 200°C. The component should be soldered within 3 seconds to prevent thermal damage.
The PCS020-EE05081S is rated for operation from -40°C to 125°C, but Bourns recommends derating the component's current rating by 1.5% per degree Celsius above 85°C to ensure reliable operation.
Bourns recommends handling the component in an ESD-protected environment, using ESD-protective packaging, and grounding all personnel and equipment before handling the component.
Bourns recommends storing the component in a dry, cool place with a relative humidity of 60% or less, and at a temperature range of 10°C to 30°C.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PCS020-EE05081S Overview

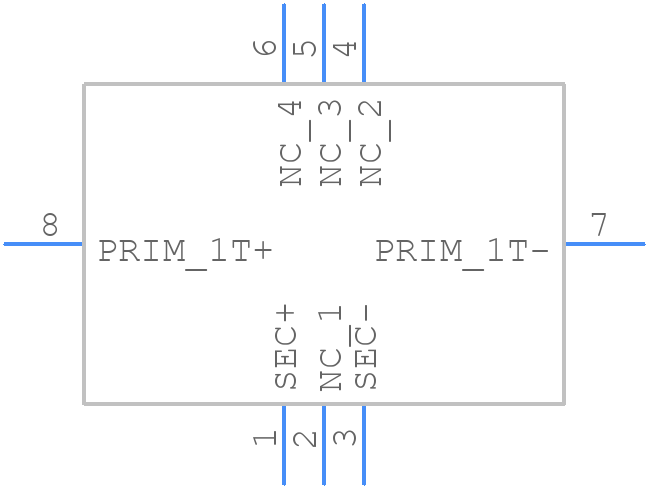

Use the download button to access the PCS020-EE05081S schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PCS02,
or try a keyword search, such as Current Sense Transformers
