PCT2075D,118 - NXP

Description: NXP - PCT2075D,118 - Temperature Sensor IC, Open Drain, ± 2°C, -55 °C, 125 °C, SOIC, 8 Pins

Download PCT2075D,118 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

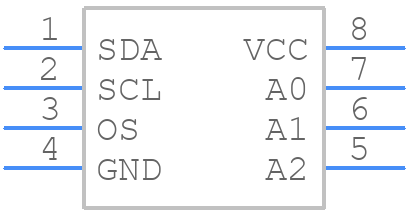

Symbol
PCT2075D,118 - NXP - PCB symbol
click to zoom
PCB Footprints
PCT2075D,118 - NXP PCB footprint - Small Outline Packages - Small Outline Packages - SO8
click to zoom
3D Models
PCT2075D,118 - NXP - 3D model - Small Outline Packages - SO8
click to zoom

PCT2075D,118 Details

  • Manufacturer Part Number:

    PCT2075D,118

  • Brand Name:

    NXP Semiconductor

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    SOT96-1

  • Country Of Origin:

    Thailand

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    5

  • Accuracy-Max (Cel):

    2 Cel

  • Body Breadth:

    3.9 mm

  • Body Height:

    1.35 mm

  • Body Length or Diameter:

    4.9 mm

  • Housing:

    PLASTIC

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    11

  • Number of Terminals:

    8

  • Operating Current-Max:

    0.4 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Interface Type:

    2-WIRE INTERFACE

  • Output Voltage-Min:

    0.4 V

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Surface Mount:

    YES

  • Termination Type:

    SOLDER

PCT2075D,118 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the PCT2075D,118 is -40°C to 125°C.
  • To configure the PCT2075D,118 for remote temperature sensing, connect the remote temperature sensor (e.g., thermistor or thermocouple) to the VTEMP pin, and use the internal ADC to measure the voltage. Then, use the temperature calculation formula provided in the datasheet to convert the voltage reading to a temperature value.
  • The internal temperature sensor in the PCT2075D,118 has an accuracy of ±2°C (typical) over the operating temperature range of -20°C to 100°C.
  • Yes, the PCT2075D,118 can be used as a thermostat. You can set a temperature threshold using the TOS and THYST pins, and the device will output a signal when the temperature exceeds the setpoint.
  • The PCT2075D,118 can be interfaced with a microcontroller using the I2C bus. Connect the SCL and SDA pins of the PCT2075D,118 to the corresponding I2C pins on the microcontroller, and use the I2C protocol to read temperature data from the PCT2075D,118.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PCT2075D,118 Overview

Use the download button to access the PCT2075D,118 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PCT20, or try a keyword search, such as Temperature Sensors

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
