PCT2075DP - NXP

Description: Pin-for-pin replacement for LM75 series but allows up to 27 devices on the bus Power supply range from 2.7 V to 5.5 V SDA and SCL inputs are overvoltage tolerant to 5.5 V

Download PCT2075DP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

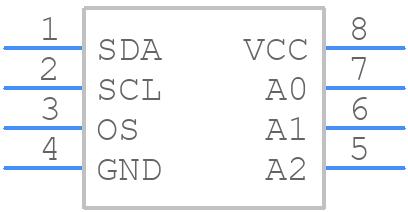

Symbol
PCT2075DP - NXP - PCB symbol
click to zoom
PCB Footprints
PCT2075DP - NXP PCB footprint - Small Outline Packages - Small Outline Packages - SOT505-1
click to zoom
3D Models
PCT2075DP - NXP - 3D model - Small Outline Packages - SOT505-1
click to zoom

PCT2075DP Details

  • Manufacturer Part Number:

    PCT2075DP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-8

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    5

  • Accuracy-Max (Cel):

    2 Cel

  • Body Breadth:

    3 mm

  • Body Height:

    0.875 mm

  • Body Length or Diameter:

    3 mm

  • Housing:

    PLASTIC

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    11

  • Number of Terminals:

    8

  • Operating Current-Max:

    0.4 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Interface Type:

    2-WIRE INTERFACE

  • Output Voltage-Min:

    0.4 V

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Surface Mount:

    YES

  • Termination Type:

    SOLDER

PCT2075DP Frequently Asked Questions (FAQs)

  • The PCT2075DP can operate from -40°C to 125°C, but the accuracy and reliability of the temperature measurement may degrade above 105°C.
  • The PCT2075DP does not require calibration, as it is a digital temperature sensor with an internal calibration. However, it's recommended to perform a system-level calibration to account for any PCB or system-level effects.
  • The typical current consumption of the PCT2075DP is around 1.5 μA, but it can vary depending on the operating frequency and mode.
  • No, the PCT2075DP is not designed for high-temperature applications above 150°C. For such applications, consider using a different temperature sensor, such as the NXP's PT100 or PT1000 series.
  • The PCT2075DP can be interfaced with a microcontroller using the I2C or SMBus interface. The sensor provides a 7-bit or 10-bit address, and the microcontroller can read the temperature data using the I2C or SMBus protocol.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PCT2075DP Overview

Use the download button to access the PCT2075DP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PCT20, or try a keyword search, such as Temperature Sensors

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
