The recommended land pattern for PCV-2-104-10L is a rectangular pad with a size of 2.5 mm x 1.5 mm, with a non-solder mask defined (NSMD) pad shape.
Yes, PCV-2-104-10L is rated for operation up to 125°C, making it suitable for high-temperature applications. However, the inductor's performance may degrade at higher temperatures, so it's essential to consult the datasheet and application notes for specific guidance.
To ensure proper soldering, use a soldering iron with a temperature of 250°C to 270°C, and apply a small amount of solder paste to the pad. Use a soldering technique that minimizes the risk of overheating the component.
The maximum current rating for PCV-2-104-10L is 1.4 A, based on a 40°C temperature rise. However, the actual current rating may vary depending on the application and operating conditions.
Yes, PCV-2-104-10L is designed for high-frequency applications up to 1 GHz. However, the inductor's performance may degrade at higher frequencies, so it's essential to consult the datasheet and application notes for specific guidance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PCV-2-104-10L Overview

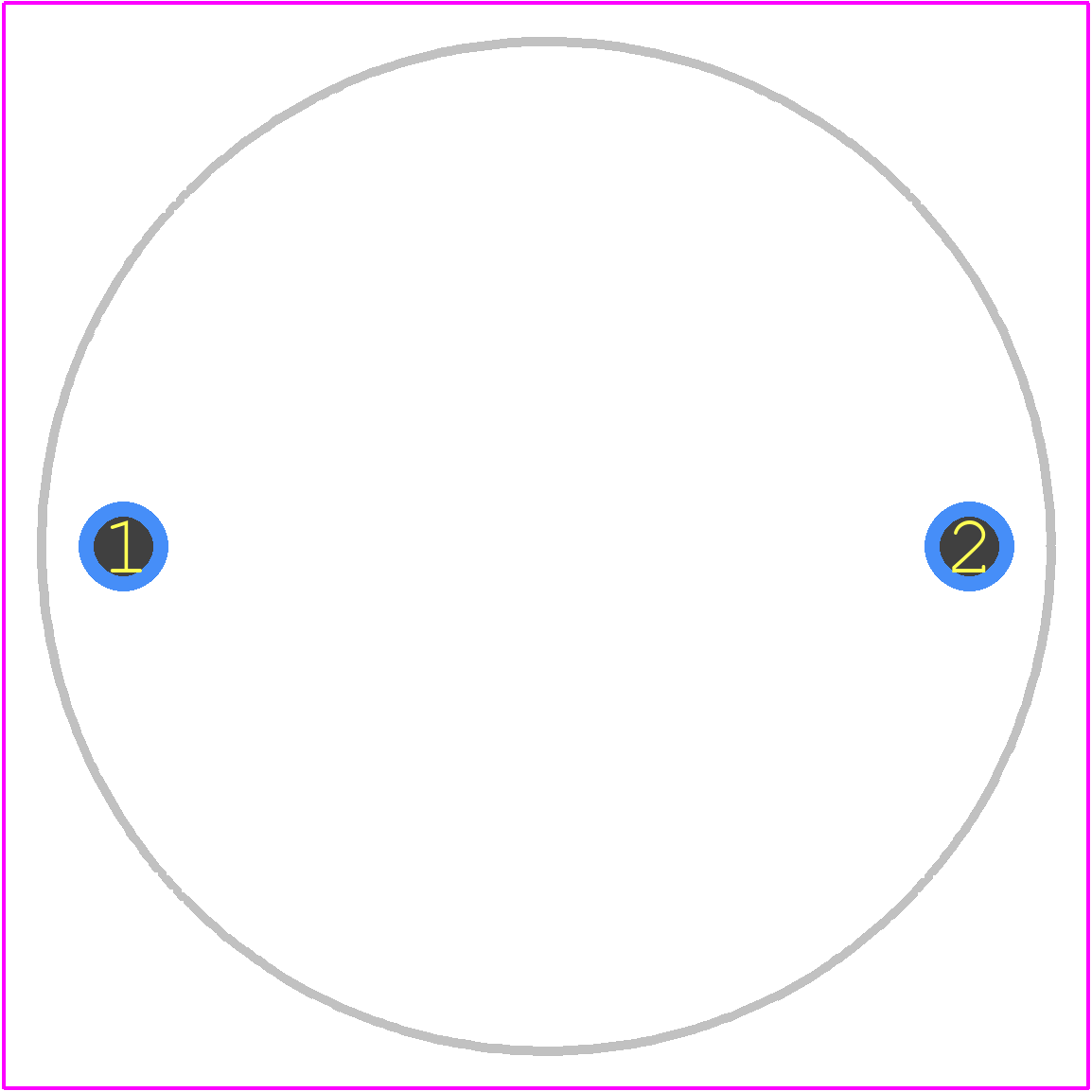

Use the download button to access the PCV-2-104-10L schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PCV-2,
or try a keyword search, such as Fixed Inductors
About COILCRAFT
Colicraft designs and manufactures high performing magnectic components, RF chip inductors, power magnectics, and filters. Coilcraft has engineering, manufacturing, and distribution facilities in North America, Asia, and Europe.
