PCV-2-274-10L - COILCRAFT

PCV-2-274-10L Frequently Asked Questions (FAQs)

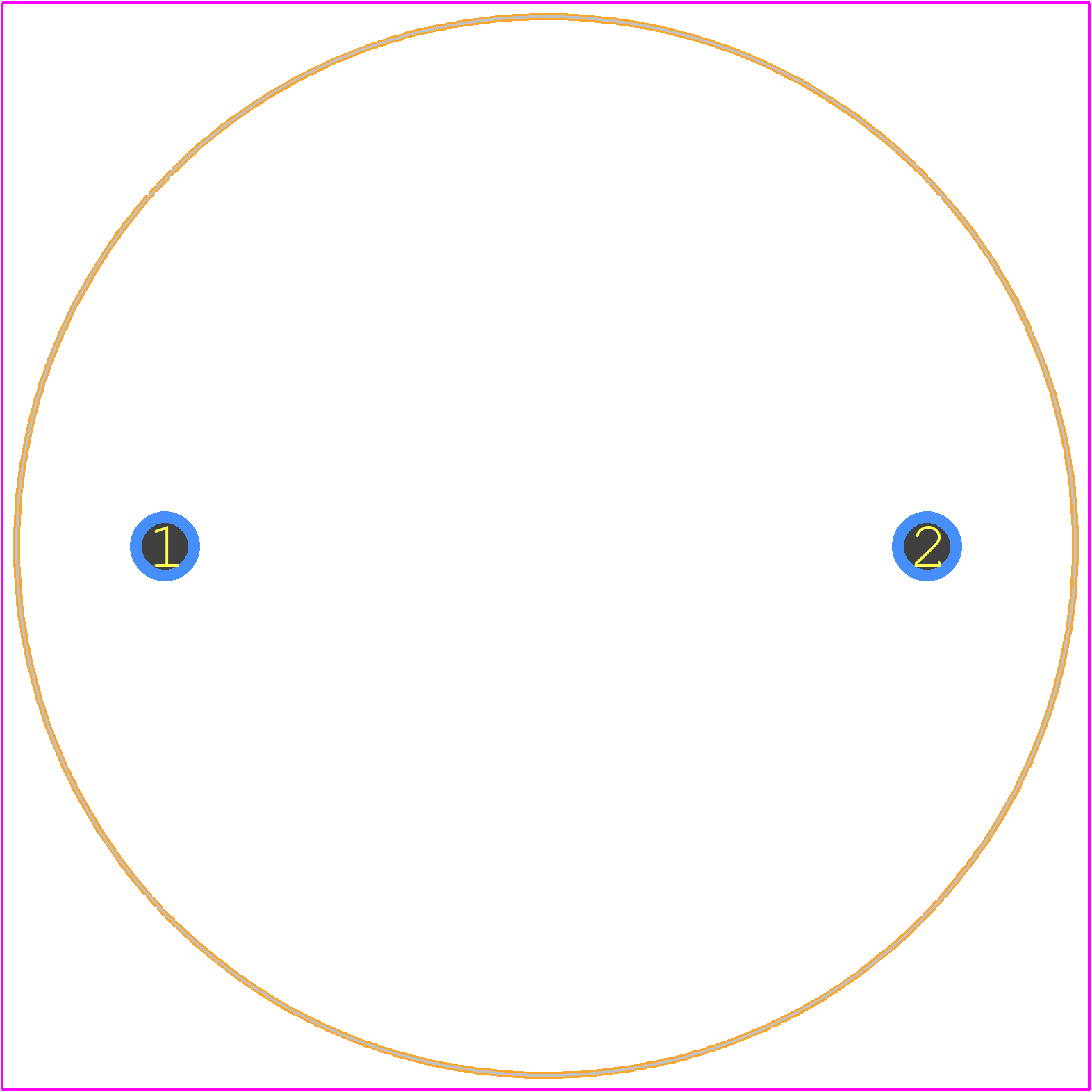

• What is the recommended land pattern for PCV-2-274-10L?
  Coilcraft recommends a land pattern with a pad size of 2.5 mm x 1.5 mm, with a non-solder mask defined (NSMD) pad and a 0.5 mm x 0.5 mm thermal pad in the center.
• Can I use PCV-2-274-10L in a high-temperature application?
  While the PCV-2-274-10L is rated for operation up to 125°C, it's essential to consider the derating curves and temperature coefficient of inductance to ensure the component meets your specific application requirements.
• How do I handle the PCV-2-274-10L's sensitivity to mechanical stress?
  To minimize the risk of mechanical stress affecting the inductor's performance, ensure proper PCB layout, handling, and assembly. Avoid bending, flexing, or applying excessive force to the component.
• What is the PCV-2-274-10L's moisture sensitivity level (MSL)?
  The PCV-2-274-10L has an MSL rating of 1, which means it can withstand normal humidity and temperature conditions without requiring special handling or storage.
• Can I use PCV-2-274-10L in a high-vibration environment?
  While the PCV-2-274-10L is designed to be robust, it's crucial to evaluate the component's performance under vibration conditions. Coilcraft recommends consulting their application notes and performing thorough testing to ensure the inductor meets your specific requirements.
