PCV-2-564-02L footprint, schematic symbol and 3D model by COILCRAFT

Symbol

click to zoom

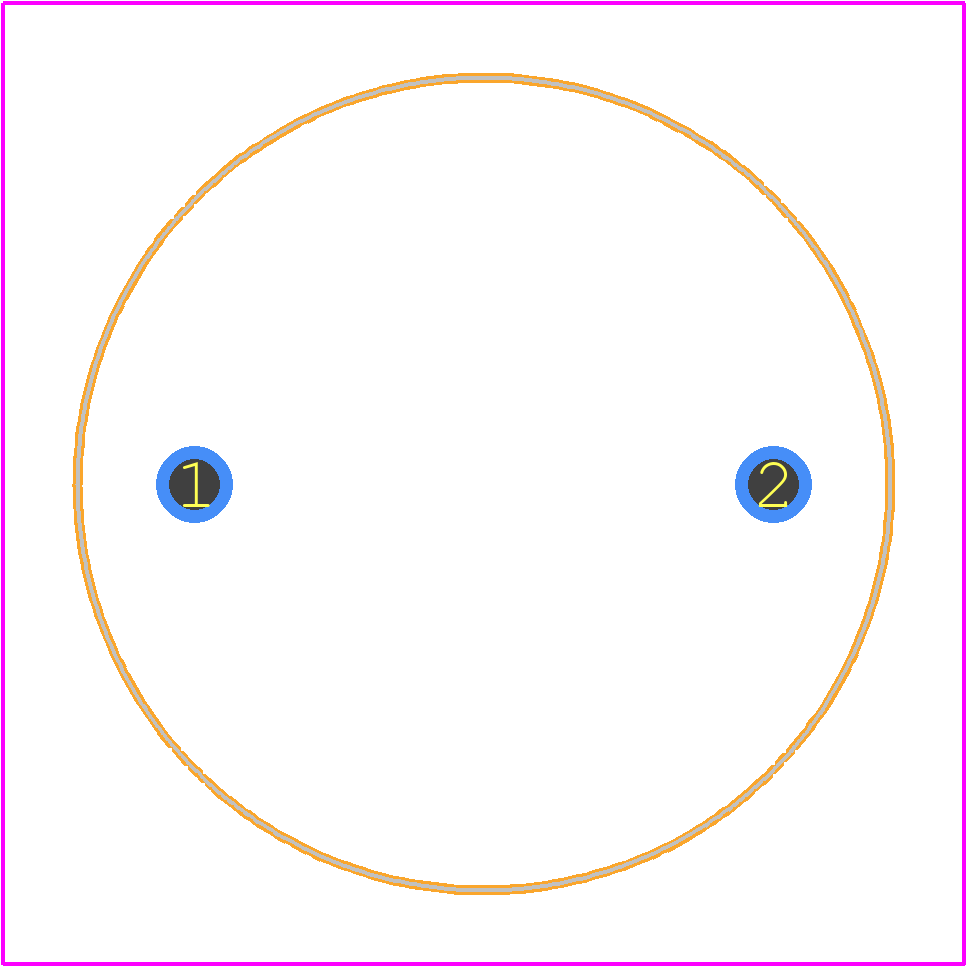

PCB Footprints

PCV-2-564-02L - COILCRAFT PCB footprint - Other - Other - PCV-2-564-02L

click to zoom

3D Models

PCV-2-564-02L - COILCRAFT - 3D model - Other - PCV-2-564-02L

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for PCV-2-564-02L
Part Number PCV-2-564-02L
Manufacturer COILCRAFT
Pin Count 2
Part Category Inductor
Package Category Other
Footprint Name Other - PCV-2-564-02L
Released Date Apr 30, 2019
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

PCV-2-564-02L Details

Manufacturer Part Number:
PCV-2-564-02L
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
RADIAL LEADED
ECCN Code:
EAR99
HTS Code:
8504.50.80.00
Manufacturer:
Coilcraft Inc
YTEOL:
6
Construction:
Open Core
Core Material:
FERRITE
DC Resistance:
0.27 Ω
Inductance-Nom (L):
560 µH
Inductor Application:
POWER INDUCTOR
Inductor Type:
GENERAL PURPOSE INDUCTOR
JESD-609 Code:
e2
Lead Diameter:
0.71 mm
Lead Length:
7.1 mm
Lead Spacing:
14.48 mm
Number of Functions:
1
Number of Terminals:
2
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Diameter:
20.32 mm
Package Length:
22.86 mm
Package Style:
Radial
Packing Method:
Tray
Rated Current-Max:
2.6 A
Shape/Size Description:
CYLINDRICAL PACKAGE
Shielded:
NO
Surface Mount:
NO
Terminal Finish:
Tin/Silver (Sn/Ag)
Terminal Placement:
RADIAL
Terminal Shape:
WIRE
Test Frequency:
0.01575 MHz
Tolerance:
10%

PCV-2-564-02L Frequently Asked Questions (FAQs)

Coilcraft recommends a land pattern with a pad size of 1.3 mm x 1.3 mm, with a non-solder mask defined (NSMD) pad shape, and a minimum clearance of 0.2 mm between the pad and the solder mask.
While the PCV-2-564-02L is rated for operation up to 125°C, it's recommended to derate the current rating by 1.5% per degree Celsius above 80°C to ensure reliable operation. Consult Coilcraft's application notes for more information.
To minimize magnetic interference, ensure that the PCV-2-564-02L is oriented such that the magnetic axis is perpendicular to the PCB. Additionally, consider using a mu-metal shield or a ferrite bead to further reduce magnetic radiation.
The DC resistance tolerance for the PCV-2-564-02L is ±5%. This means that the actual DC resistance may vary by up to 5% from the specified value.
While the PCV-2-564-02L is designed to withstand normal vibration, it's recommended to consult Coilcraft's application notes for specific guidance on vibration testing and derating. Additionally, consider using a secure mounting method, such as a screw-down or adhesive, to ensure the inductor remains securely attached to the PCB.
