PCV-2-564-06L footprint, schematic symbol and 3D model by COILCRAFT

Symbol

click to zoom

PCB Footprints

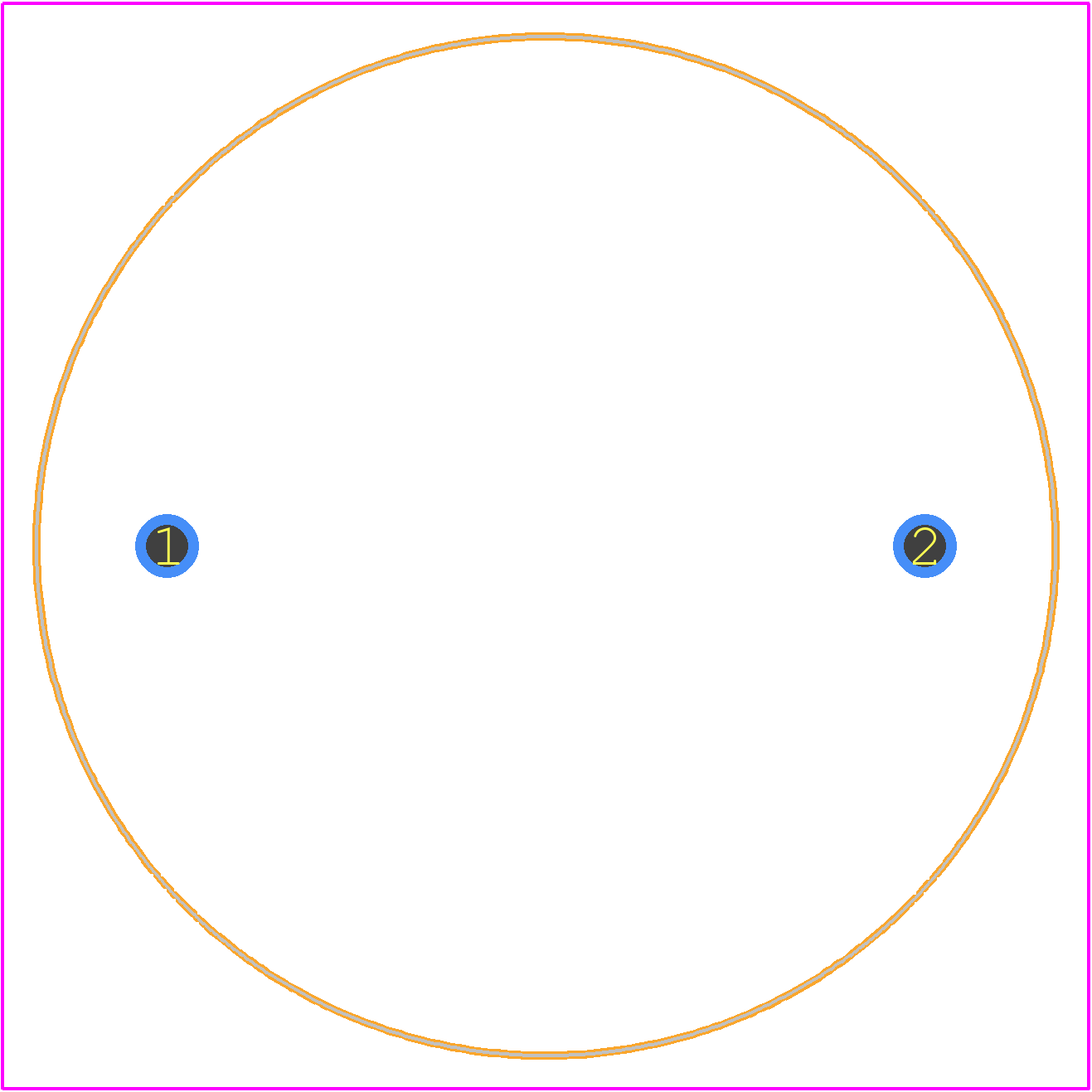

PCV-2-564-06L - COILCRAFT PCB footprint - Other - Other - PCV-2-564-06L-1

click to zoom

3D Models

PCV-2-564-06L - COILCRAFT - 3D model - Other - PCV-2-564-06L-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for PCV-2-564-06L
Part Number PCV-2-564-06L
Manufacturer COILCRAFT
Pin Count 2
Part Category Inductor
Package Category Other
Footprint Name Other - PCV-2-564-06L-1
Released Date Sep 10, 2019
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

PCV-2-564-06L Details

Manufacturer Part Number:
PCV-2-564-06L
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
RADIAL LEADED
ECCN Code:
EAR99
HTS Code:
8504.50.80.00
Manufacturer:
Coilcraft Inc
YTEOL:
6
Construction:
Open Core
Core Material:
FERRITE
DC Resistance:
0.17 Ω
Inductance-Nom (L):
560 µH
Inductor Application:
POWER INDUCTOR
Inductor Type:
GENERAL PURPOSE INDUCTOR
JESD-609 Code:
e2
Lead Diameter:
0.97 mm
Lead Length:
7.1 mm
Lead Spacing:
22.86 mm
Number of Functions:
1
Number of Terminals:
2
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Diameter:
30.73 mm
Package Length:
26.67 mm
Package Style:
Radial
Packing Method:
Tray
Rated Current-Max:
4 A
Shape/Size Description:
CYLINDRICAL PACKAGE
Shielded:
NO
Surface Mount:
NO
Terminal Finish:
Tin/Silver (Sn/Ag)
Terminal Placement:
RADIAL
Terminal Shape:
WIRE
Test Frequency:
0.01575 MHz
Tolerance:
10%

PCV-2-564-06L Frequently Asked Questions (FAQs)

Coilcraft recommends a land pattern with a pad size of 1.3 mm x 1.3 mm, with a non-solder mask defined (NSMD) pad shape, and a minimum clearance of 0.2 mm between the pad and the solder mask.
While the datasheet specifies an operating temperature range of -40°C to +125°C, PCV-2-564-06L can be used in high-temperature applications up to 150°C with derating. However, it's essential to consult with Coilcraft's application engineers to determine the suitable temperature range for your specific application.
PCV-2-564-06L is designed for high-frequency applications and exhibits low insertion loss and high impedance up to 1 GHz. However, the inductor's performance may degrade above 1 GHz due to skin effect and proximity effect. For frequencies above 1 GHz, it's recommended to consult with Coilcraft's application engineers or consider alternative components.
Yes, PCV-2-564-06L is compatible with lead-free soldering processes, including SAC305 and Sn96.5Ag3Cu0.5. However, it's essential to follow the recommended soldering profile and temperature range to ensure reliable assembly.
The typical tolerance for the inductance value of PCV-2-564-06L is ±5%. However, Coilcraft can provide custom inductors with tighter tolerances (e.g., ±2% or ±1%) upon request.

Trust Checks

Expert Contribution

System Verified

Community Approved

PCV-2-564-06L Overview

Use the download button to access the PCV-2-564-06L schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like PCV-2, or try a keyword search, such as Fixed Inductors

About COILCRAFT

Colicraft designs and manufactures high performing magnectic components, RF chip inductors, power magnectics, and filters. Coilcraft has engineering, manufacturing, and distribution facilities in North America, Asia, and Europe.
