PCV-2-564-08L - COILCRAFT

PCV-2-564-08L Frequently Asked Questions (FAQs)

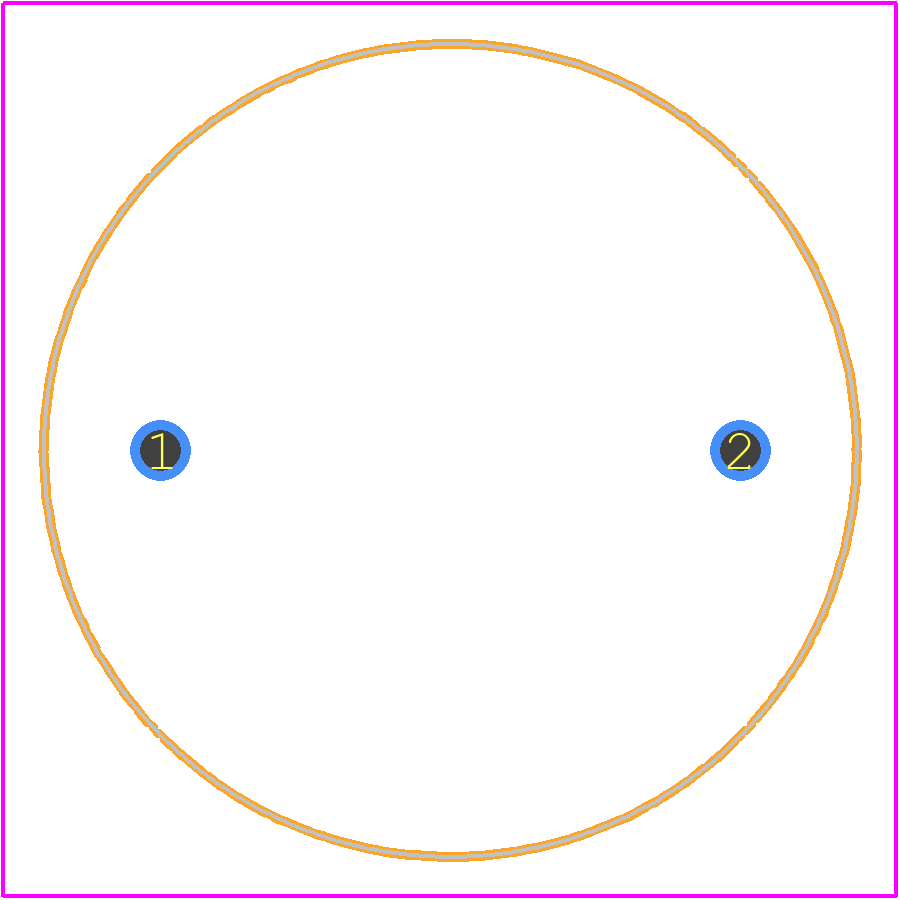

• What is the recommended land pattern for PCV-2-564-08L?
  Coilcraft recommends a land pattern with a pad size of 1.3 mm x 1.3 mm, with a non-solder mask defined (NSMD) pad and a 0.2 mm gap between pads. This ensures proper soldering and minimizes the risk of solder bridging.
• Can I use PCV-2-564-08L in high-temperature applications?
  While the PCV-2-564-08L is rated for operation up to 125°C, it's essential to consider the derating curve provided in the datasheet. Above 85°C, the inductor's impedance and inductance values may deviate from the specified values. It's recommended to consult with Coilcraft's application engineers for specific guidance on high-temperature applications.
• How do I ensure proper PCB layout and routing for PCV-2-564-08L?
  To minimize electromagnetic interference (EMI) and ensure optimal performance, keep the following guidelines in mind: keep the inductor away from high-current traces, use a solid ground plane, and avoid routing high-frequency signals near the inductor. Additionally, consider using a shielded inductor or a ferrite bead to further reduce EMI.
• What is the PCV-2-564-08L's tolerance for DC bias?
  The PCV-2-564-08L is designed to handle DC bias up to 1.2 A. However, exceeding this value may cause the inductor's inductance to decrease and its impedance to increase. It's essential to consult the datasheet's DC bias characteristics graph to determine the inductor's behavior under specific DC bias conditions.
• Can I use PCV-2-564-08L in a high-vibration environment?
  While the PCV-2-564-08L is a robust component, it's still susceptible to vibration-induced failures. Coilcraft recommends following the IPC-J-STD-001 standard for soldering and assembly to ensure the inductor is properly secured to the PCB. Additionally, consider using a vibration-dampening material or a conformal coating to further mitigate the effects of vibration.
