Bourns provides a recommended PCB layout and land pattern in their application note AN204, which can be found on their website. It's essential to follow these guidelines to ensure proper assembly and performance of the component.
The PCW1D-C24-KAB104L has a maximum operating temperature of 125°C. Ensure that your design takes into account thermal management, such as providing adequate heat dissipation paths and avoiding thermal hotspots. You can also consult Bourns' application notes and thermal management guidelines for more information.
Bourns recommends following the IPC J-STD-020D.1 standard for soldering temperature profiles. The component is also compatible with lead-free soldering processes. It's essential to follow proper soldering techniques and temperature control to prevent damage to the component.
While the PCW1D-C24-KAB104L is a robust component, it's essential to evaluate its suitability for high-vibration or high-shock environments. Bourns provides vibration and shock testing data in their application notes, which can help you determine the component's reliability in such conditions.
The PCW1D-C24-KAB104L is designed to meet various EMC standards, such as CISPR 25 and IEC 62133. Ensure that your design follows proper EMC design practices, such as using shielding, filtering, and grounding techniques to minimize electromagnetic interference.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PCW1D-C24-KAB104L Overview

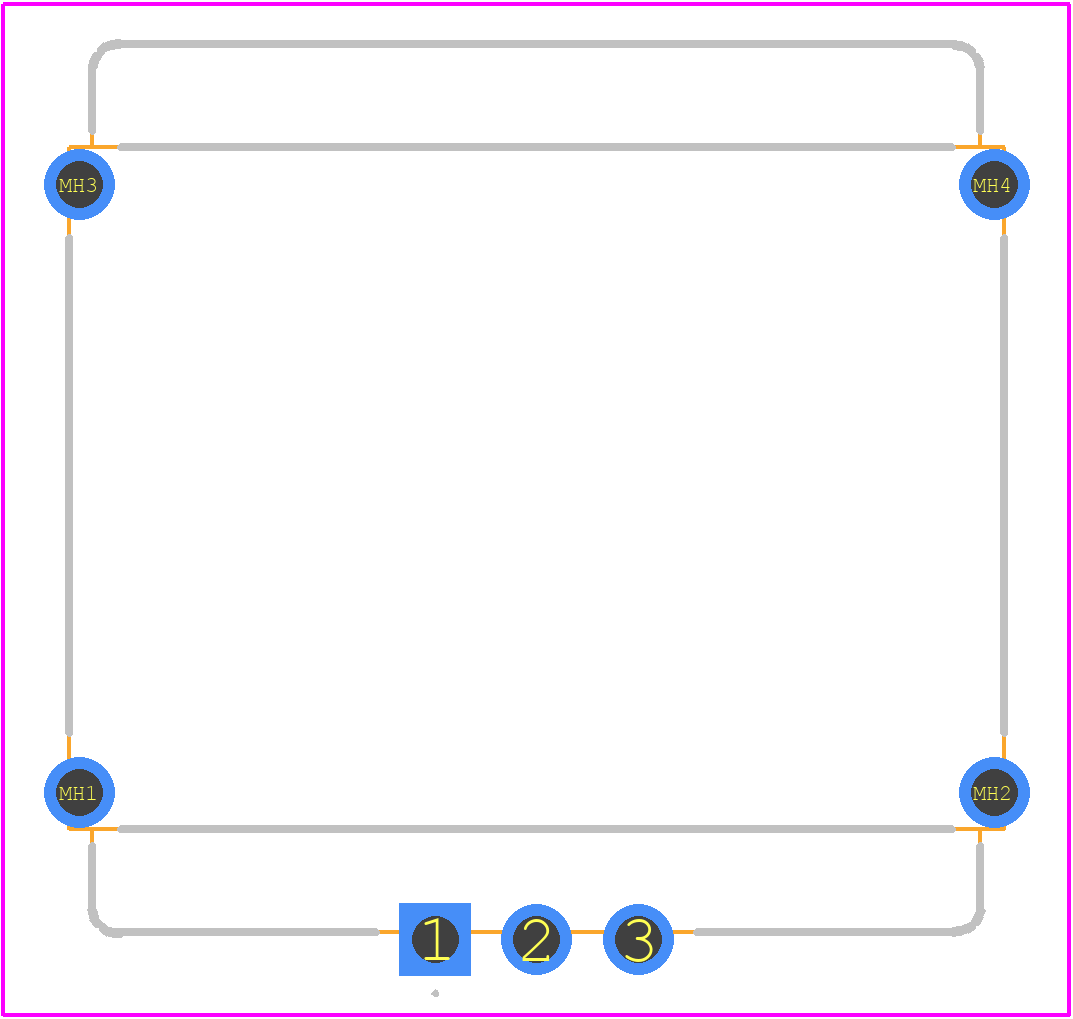

Use the download button to access the PCW1D-C24-KAB104L schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like PCW1D,
or try a keyword search, such as Variable Resistors
