Bourns provides a recommended PCB layout and land pattern in their application note AN164, which can be found on their website. It's essential to follow these guidelines to ensure proper assembly and to minimize thermal resistance.
To select the correct current rating, you need to consider the maximum current required by your circuit, taking into account any potential inrush currents or surges. You should also consider the ambient temperature and the desired temperature rise of the component. Bourns provides a current rating selection guide in their datasheet, which can help with this process.
The derating curve for PCW1J-B24-BAB502L can be found in the datasheet. It shows how the component's current rating decreases as the ambient temperature increases. You need to consider this derating curve when designing your circuit to ensure that the component operates within its specified limits and to prevent overheating.
Yes, PCW1J-B24-BAB502L is designed to withstand high-vibration environments. Bourns specifies a vibration test in accordance with IEC 60068-2-6, which ensures that the component can operate reliably in applications with high vibration levels.
To ensure the reliability and longevity of PCW1J-B24-BAB502L, you should follow proper assembly and soldering techniques, ensure good thermal management, and operate the component within its specified electrical and environmental limits. You should also consider implementing overcurrent protection and overvoltage protection in your design.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PCW1J-B24-BAB502L Overview

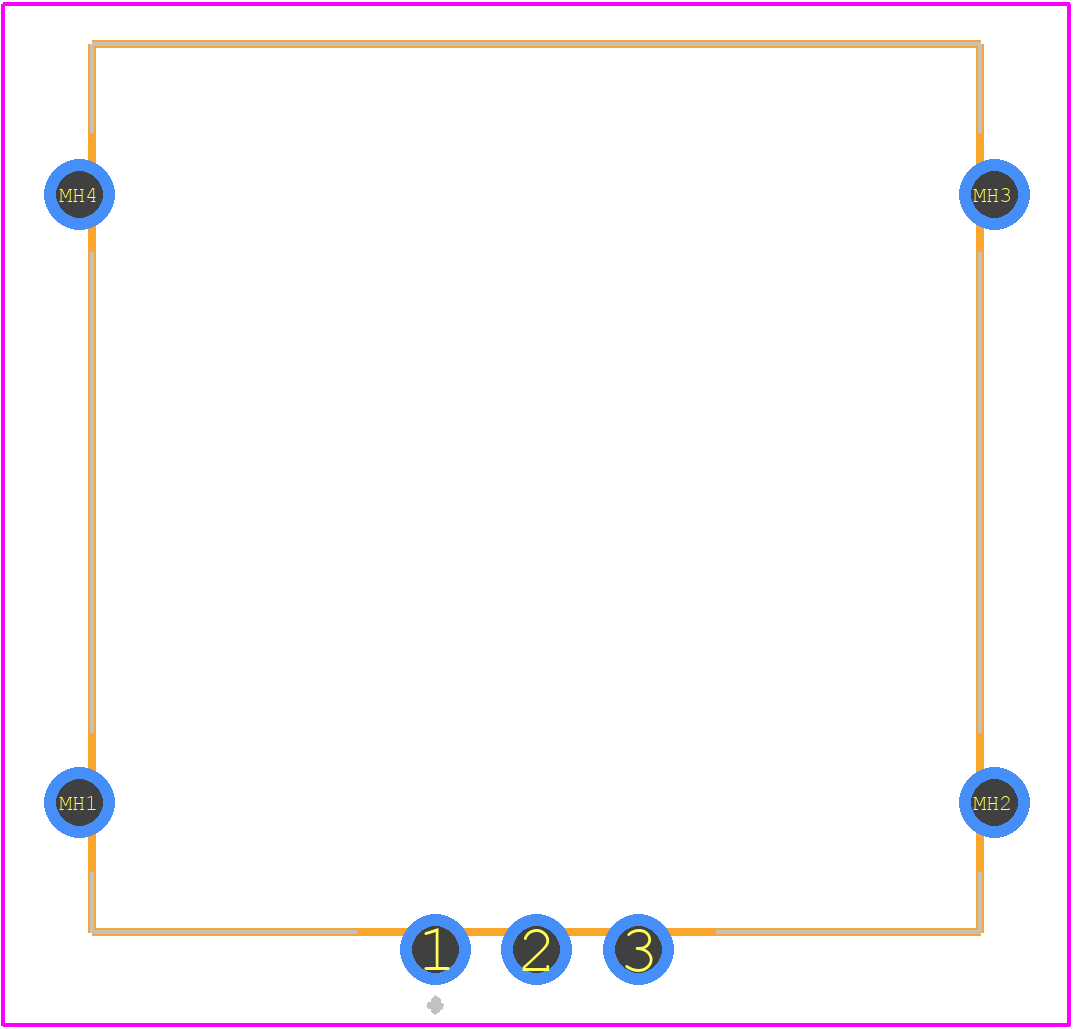

Use the download button to access the PCW1J-B24-BAB502L schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PCW1J,
or try a keyword search, such as Variable Resistors
