Bourns provides a recommended PCB layout and land pattern in their application note AN164, which can be found on their website. It's essential to follow these guidelines to ensure proper mounting and to minimize thermal resistance.
Proper thermal management is crucial for the reliability and performance of PCW1J-B24-KEB103L. Ensure good airflow, use a heat sink if necessary, and follow the recommended PCB layout and land pattern. Bourns also provides thermal resistance data in the datasheet to help with thermal design.
The maximum operating temperature range for PCW1J-B24-KEB103L is -40°C to 150°C, as specified in the datasheet. However, it's essential to note that the device's performance and reliability may degrade at higher temperatures, so it's recommended to operate within a narrower temperature range if possible.
PCW1J-B24-KEB103L is designed to withstand moderate vibration levels, but it's essential to evaluate the specific vibration requirements of your application. Bourns provides vibration testing data in their reliability report, which can be requested from their sales team or technical support.
Bourns is a reputable manufacturer with a strong focus on quality and reliability. Ensure you purchase from an authorized distributor, follow proper storage and handling procedures, and implement a robust manufacturing process. Additionally, Bourns provides a warranty and reliability data in their datasheet and application notes.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PCW1J-B24-KEB103L Overview

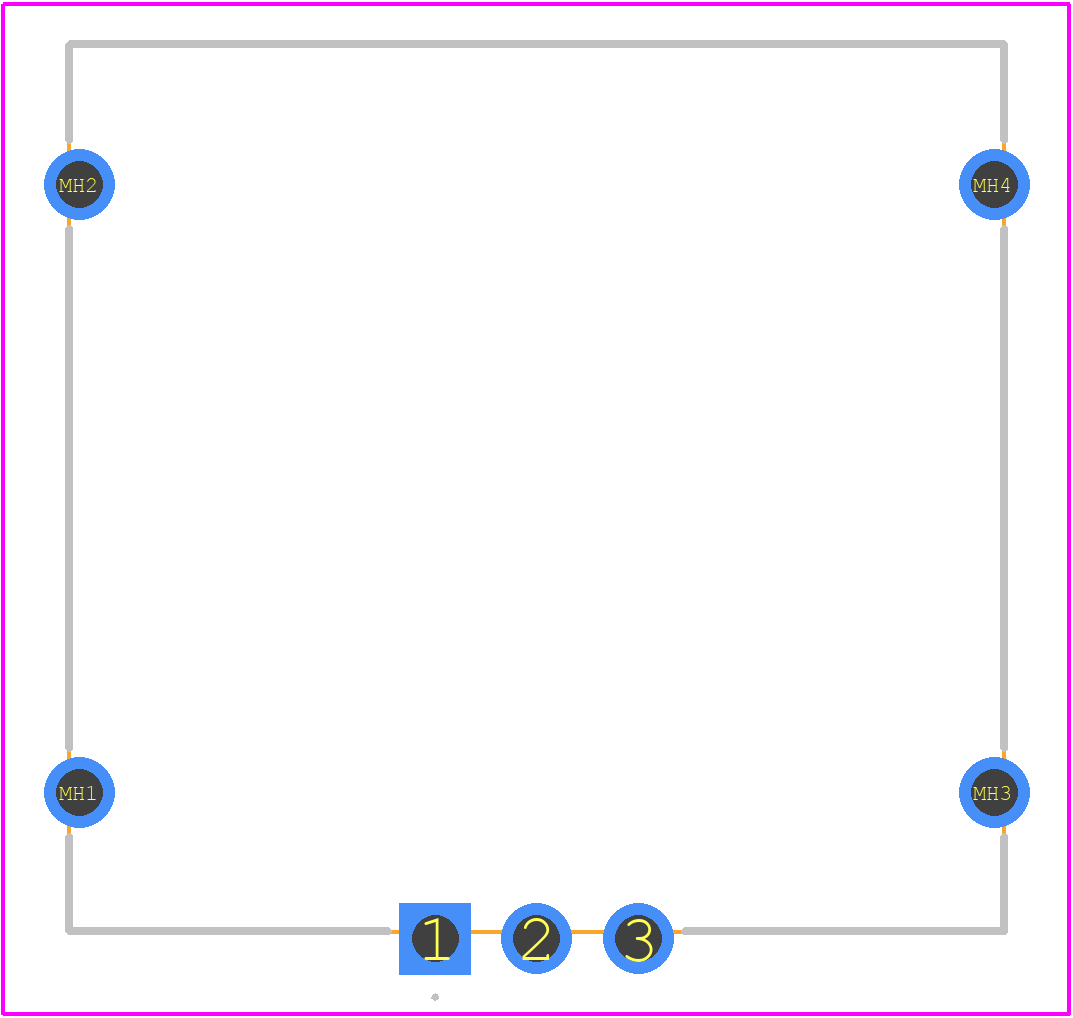

Use the download button to access the PCW1J-B24-KEB103L schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PCW1J,
or try a keyword search, such as Variable Resistors
