Bourns provides a recommended PCB layout and land pattern in their application note AN204, which can be found on their website. It's essential to follow these guidelines to ensure proper mounting and to minimize thermal resistance.
Proper thermal management is crucial for the reliability and performance of PCW1J-C24-BEB253L. Ensure good airflow, use a heat sink if necessary, and follow the recommended PCB layout and land pattern. Bourns also provides thermal resistance data in the datasheet to help with thermal design.
The maximum operating temperature range for PCW1J-C24-BEB253L is -40°C to +125°C, as specified in the datasheet. However, it's essential to note that the device's performance and reliability may degrade at higher temperatures, so it's recommended to operate within a narrower temperature range if possible.
While PCW1J-C24-BEB253L is a robust component, it's still important to consider the vibration environment in which it will operate. Bourns provides vibration testing data in their reliability report, which can be found on their website. If the vibration environment exceeds the tested levels, additional mechanical support or vibration isolation may be necessary.
To ensure the reliability and longevity of PCW1J-C24-BEB253L, follow proper storage and handling procedures, avoid exceeding the recommended operating conditions, and ensure good PCB design and assembly practices. Bourns also provides reliability data and guidelines in their application notes and datasheet.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PCW1J-C24-BEB253L Overview

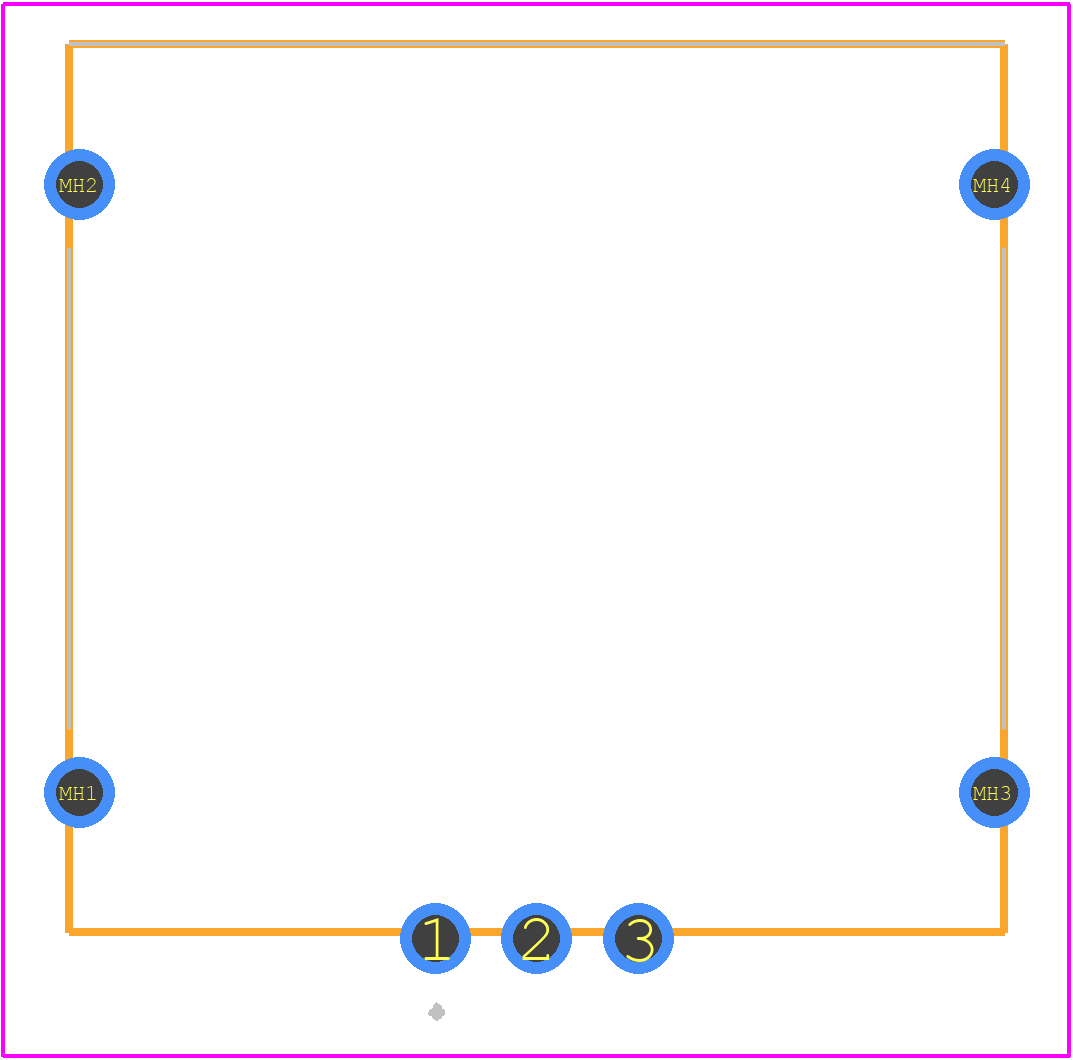

Use the download button to access the PCW1J-C24-BEB253L schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PCW1J,
or try a keyword search, such as Variable Resistors
