PD0810J5050S2HF - ANAREN

Description: RF Power Divider 800 MHz ~ 1 GHz Isolation (Min) 17dB, 4° Imbalance MAX 0805 (2012 Metric) 50Ω

Download PD0810J5050S2HF Model

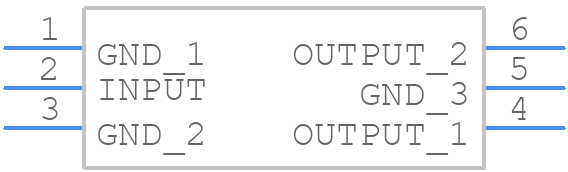

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
PD0810J5050S2HF - ANAREN PCB footprint - Other - Other - 0805 (2012 Metric)_2025-2.2
click to zoom
3D Models
PD0810J5050S2HF - ANAREN  - 3D model - Other - 0805 (2012 Metric)_2025-2.2
click to zoom

PD0810J5050S2HF Details

  • Manufacturer Part Number:

    PD0810J5050S2HF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    HALOGEN FREE AND ROHS COMPLIANT PACKAGE-6

  • Manufacturer:

    Anaren Microwave

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    33.01 dBm

  • Insertion Loss-Max:

    0.6 dB

  • Operating Frequency-Max:

    1000 MHz

  • Operating Frequency-Min:

    800 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -55 °C

  • RF/Microwave Device Type:

    SPLITTER

PD0810J5050S2HF Frequently Asked Questions (FAQs)

  • The recommended PCB layout and land pattern can be found in the Anaren Microwave application note AN-112, which provides guidelines for optimal performance and reliability.
  • The PD0810J5050S2HF has a thermal pad on the bottom of the package, which should be connected to a thermal ground plane on the PCB to dissipate heat. A thermal interface material (TIM) can be used to improve heat transfer.
  • The PD0810J5050S2HF is rated for operation from -40°C to +85°C, but derating may be necessary for high-power applications or extreme environmental conditions.
  • The PD0810J5050S2HF has a nominal impedance of 50 ohms, but impedance matching may be necessary to achieve optimal performance. Anaren Microwave provides a matching network design guide in their application note AN-114.
  • The PD0810J5050S2HF has a directional radiation pattern, which can affect system performance depending on the application. Anaren Microwave provides radiation pattern data in their application note AN-115.
