PD09-73LF - Skyworks

Description: Two-Way 0° Power Splitter/Combiner 0.81 to 0.96 GHz

Download PD09-73LF Model

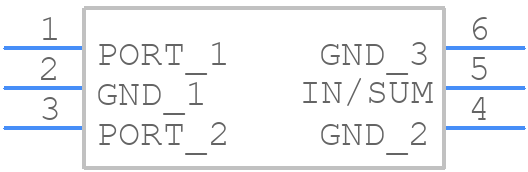

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
PD09-73LF - Skyworks PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - SOT-6
click to zoom
3D Models
PD09-73LF - Skyworks  - 3D model - SOT23 (6-Pin) - SOT-6
click to zoom

PD09-73LF Details

  • Manufacturer Part Number:

    PD09-73LF

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT, SOT-6, 6 PIN

  • Manufacturer:

    Skyworks Solutions Inc

  • YTEOL:

    0

  • Additional Feature:

    ISOLATION-MIN (DB):18

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    31.76 dBm

  • Insertion Loss-Max:

    0.6 dB

  • JESD-609 Code:

    e3

  • Operating Frequency-Max:

    960 MHz

  • Operating Frequency-Min:

    810 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    SPLITTER AND COMBINER

  • Terminal Finish:

    Matte Tin (Sn)

  • VSWR-Max:

    1.5

PD09-73LF Frequently Asked Questions (FAQs)

  • The recommended PCB layout and land pattern for PD09-73LF can be found in the Skyworks Solutions Inc. application note AN302A, which provides detailed guidelines for optimal performance and thermal management.
  • To ensure reliable operation across the entire operating temperature range, it is essential to follow the recommended thermal management guidelines, including proper heat sinking, thermal interface materials, and airflow. Additionally, ensure that the device is operated within the specified power derating curves.
  • Using a non-recommended substrate material for the PCB can affect the device's performance, reliability, and thermal management. It is recommended to use a substrate material with a high thermal conductivity, such as FR4 or Rogers 4350, to ensure optimal performance and thermal management.
  • ESD protection for the PD09-73LF can be achieved through the use of ESD protection devices, such as TVS diodes or ESD arrays, on the input and output lines. Additionally, proper handling and storage procedures should be followed to prevent ESD damage during manufacturing and assembly.
  • The recommended soldering and rework procedures for the PD09-73LF can be found in the Skyworks Solutions Inc. application note AN301A, which provides detailed guidelines for soldering, desoldering, and rework techniques to ensure reliable assembly and minimize the risk of damage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PD09-73LF Overview

Use the download button to access the PD09-73LF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PD09-, or try a keyword search, such as RF/Microwave Splitter/Combiners
