PD3150J5050S2HF - ANAREN

Description: RF Power Divider 3.1 GHz ~ 5 GHz Isolation (Min) 13dB, 8.6dB Return Loss 0805 (2012 Metric)

Download PD3150J5050S2HF Model

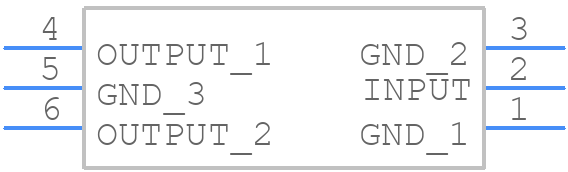

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
PD3150J5050S2HF - ANAREN PCB footprint - Other - Other - 0805 (2012 Metric)_2025
click to zoom
3D Models
PD3150J5050S2HF - ANAREN  - 3D model - Other - 0805 (2012 Metric)_2025
click to zoom

PD3150J5050S2HF Details

  • Manufacturer Part Number:

    PD3150J5050S2HF

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    HALOGEN FREE AND ROHS COMPLIANT, SURFACE MOUNT PACKAGE-6

  • Manufacturer:

    Anaren Microwave

  • Additional Feature:

    ISOLATION-MIN (DB):13

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    33.01 dBm

  • Insertion Loss-Max:

    1.3 dB

  • JESD-609 Code:

    e4

  • Operating Frequency-Max:

    5000 MHz

  • Operating Frequency-Min:

    3100 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -55 °C

  • RF/Microwave Device Type:

    SPLITTER

  • Terminal Finish:

    Gold (Au) - with Nickel (Ni) barrier

PD3150J5050S2HF Frequently Asked Questions (FAQs)

  • The recommended PCB layout and land pattern can be found in the Anaren Microwave application note AN-112, which provides guidelines for optimal performance and thermal management.
  • The PD3150J5050S2HF has a thermal pad on the bottom of the package. It is recommended to use a thermal interface material (TIM) and attach the device to a heat sink or a metal core PCB to ensure proper heat dissipation.
  • The maximum operating temperature range for the PD3150J5050S2HF is -40°C to +125°C, but it's recommended to operate within -20°C to +100°C for optimal performance and reliability.
  • While the PD3150J5050S2HF is designed for 50 ohm systems, it can be used in non-50 ohm systems with proper impedance matching. However, this may affect the device's performance and power handling capabilities.
  • The recommended input and output matching network can be found in the Anaren Microwave application note AN-113, which provides a detailed design guide for optimal performance and impedance matching.
