- Part Number PD6080J5050S2HF
- Manufacturer ANAREN
- Pin Count 6
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - PD6080J5050S2HF-2
- Released Date Nov 20, 2020
- Last Modified Date May 12, 2025 10:59 AM UTC
- Pinout / Pin List Click Here (Member Only)
PD6080J5050S2HF Details
-
Manufacturer Part Number:
PD6080J5050S2HF
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Transferred
-
Package Description:
HALOGEN FREE AND ROHS COMPLIANT, SUB-MINIATURE, SURFACE MOUNT, CERAMIC, 0805, 6 PIN
-
Manufacturer:
Anaren Microwave
-
Additional Feature:
ISOLATION-MIN (DB):12
-
Characteristic Impedance:
50 Ω
-
Construction:
COMPONENT
-
Input Power-Max (CW):
33.01 dBm
-
Insertion Loss-Max:
0.9 dB
PD6080J5050S2HF Frequently Asked Questions (FAQs)
-
The recommended PCB layout and land pattern can be found in the Anaren Microwave application note AN-112, which provides guidelines for optimal performance and thermal management.
-
Proper thermal management can be achieved by following the guidelines in the datasheet for thermal resistance and thermal impedance. Additionally, using a thermal interface material and a heat sink can help to dissipate heat effectively.
-
The maximum operating temperature range for the PD6080J5050S2HF is -40°C to +85°C, as specified in the datasheet. Operating the device outside of this range may affect its performance and reliability.
-
Yes, the PD6080J5050S2HF is designed to meet the requirements of high-reliability and aerospace applications. However, it is recommended to consult with Anaren Microwave's sales team to discuss specific requirements and obtain necessary certifications.
-
The typical lead time and minimum order quantity for the PD6080J5050S2HF may vary depending on the region and availability. It is recommended to contact Anaren Microwave's sales team or authorized distributors for the most up-to-date information.
Trust Checks
Expert Contribution
System Verified
Community Approved
PD6080J5050S2HF Overview

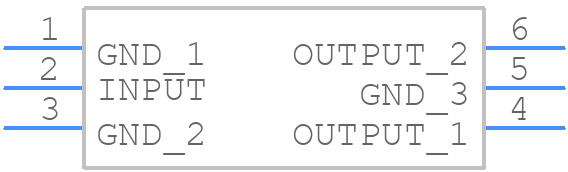

Use the download button to access the PD6080J5050S2HF schematic symbol, PCB footprint, and 3D model.
