PD69201ILD-TR footprint, schematic symbol and 3D model by Microchip

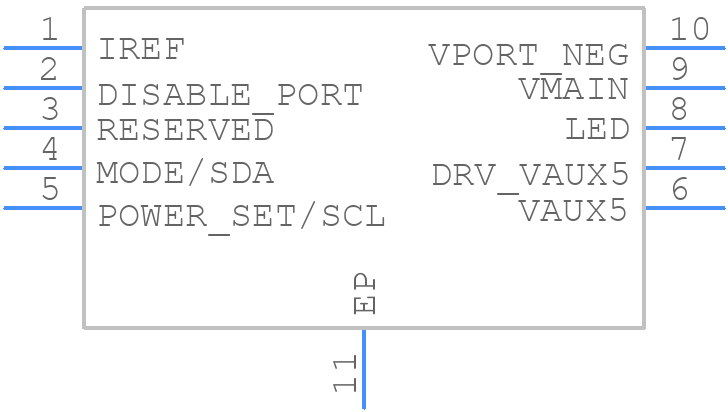

Symbol

click to zoom

PCB Footprints

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for PD69201ILD-TR
Part Number PD69201ILD-TR
Manufacturer Microchip
Pin Count 11
Part Category Integrated Circuit
Package Category Small Outline No-lead
Footprint Name Small Outline No-lead - PD69201ILD-TR-
Released Date Jan 23, 2023
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

PD69201ILD-TR Details

Manufacturer Part Number:
PD69201ILD-TR
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
DFN-10
Pin Count:
10
Manufacturer Package Code:
VDFN-10
Country Of Origin:
Thailand
ECCN Code:
EAR99
HTS Code:
8542.39.00.01
Factory Lead Time:
7 Weeks
Manufacturer:
Microchip Technology Inc
YTEOL:
19
JESD-30 Code:
R-PDSO-N10
JESD-609 Code:
e4
Length:
4 mm
Number of Terminals:
10
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
HVSON
Package Equivalence Code:
SOLCC10,.12,25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE
Seated Height-Max:
1 mm
Supply Voltage-Max:
57 V
Supply Voltage-Min:
32 V
Supply Voltage-Nom:
55 V
Surface Mount:
YES
Technology:
CMOS
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
NO LEAD
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Width:
3 mm
uPs/uCs/Peripheral ICs Type:
PSE CONTROLLER

PD69201ILD-TR Frequently Asked Questions (FAQs)

For optimal thermal performance, it is recommended to use a 2-layer or 4-layer PCB with a solid ground plane, and to place thermal vias under the device to dissipate heat efficiently.
To ensure reliable operation across the entire operating temperature range, it is recommended to follow the recommended operating conditions, use a suitable thermal management system, and consider the device's thermal derating.
Exceeding the maximum junction temperature can lead to reduced device lifespan, decreased performance, and potential device failure. It is essential to ensure the device operates within the recommended temperature range.
The PD69201ILD-TR is a commercial-grade device, and its use in high-reliability or safety-critical applications may require additional testing, validation, and certification. It is recommended to consult with Microchip Technology Inc. or a qualified reliability engineer for guidance.
To troubleshoot issues related to the device's power management features, it is recommended to consult the datasheet, application notes, and Microchip Technology Inc.'s technical support resources. Additionally, using a logic analyzer or oscilloscope can help identify issues related to power sequencing, voltage monitoring, and reset functionality.

Trust Checks

Community Provided

System Verified

Community Approved

PD69201ILD-TR Overview

Use the download button to access the PD69201ILD-TR schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like PD692, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
