Bourns provides a recommended PCB layout and land pattern in their application note AN164, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance, thermal management, and reliability.
Bourns recommends following the soldering guidelines outlined in their application note AN165, which includes information on soldering temperature, time, and techniques. Additionally, using a soldering iron with a temperature control and a fluxless soldering process can help minimize defects.
While the datasheet specifies an operating temperature range of -40°C to 125°C, it's essential to note that the device's performance and reliability may degrade at extreme temperatures. It's recommended to operate the device within a temperature range of -20°C to 100°C for optimal performance and longevity.
Bourns recommends handling the device with anti-static wrist straps, mats, and packaging materials to prevent ESD damage. Store the device in its original packaging or a similar anti-static container to prevent damage and degradation.
Bourns provides a testing and validation guide in their application note AN166, which outlines the recommended procedures for testing and validating the device's performance, including electrical characterization, environmental testing, and reliability testing.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PDB12-H4201-103BF Overview

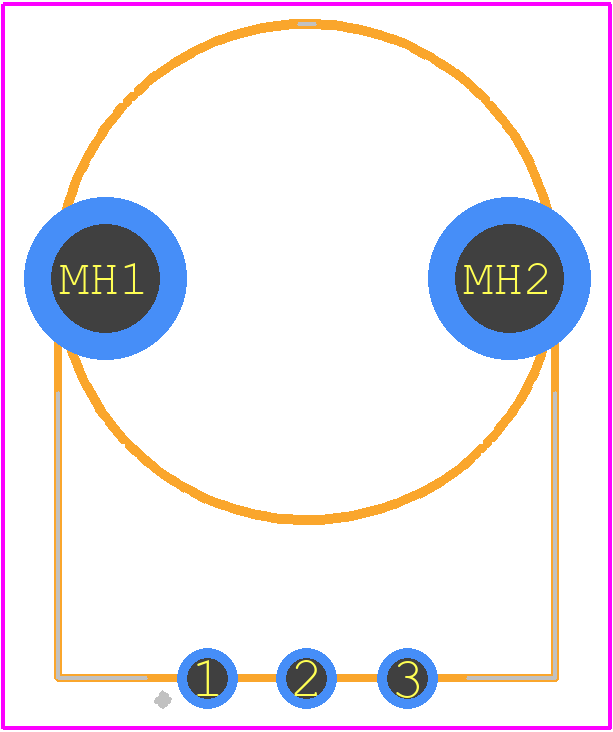

Use the download button to access the PDB12-H4201-103BF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PDB12,
or try a keyword search, such as Variable Resistors
