PDB12-H4251-202BF - Bourns

Description: Potentiometers 2K LINEAR 12MM

Download PDB12-H4251-202BF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PDB12-H4251-202BF - Bourns - PCB symbol
click to zoom
PCB Footprints

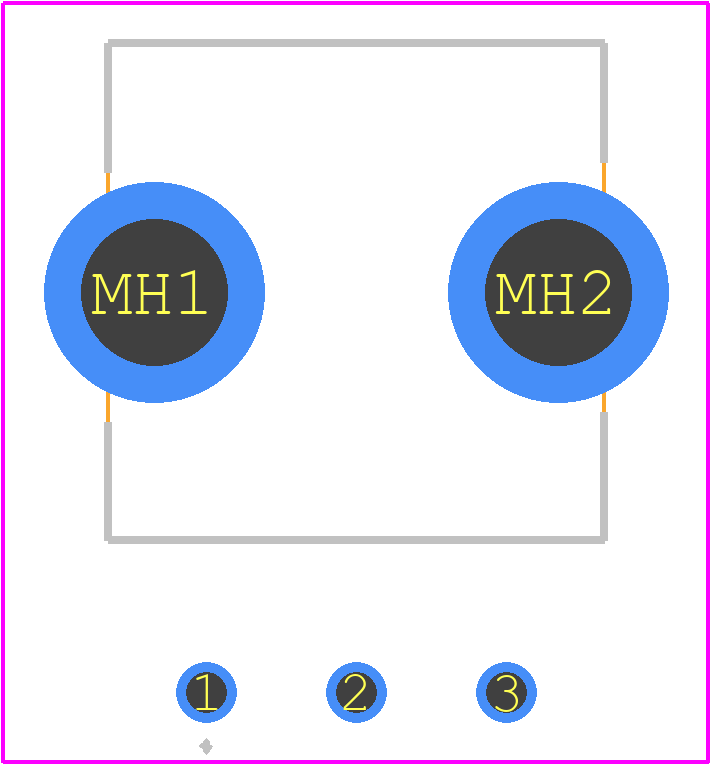

PDB12-H4251-202BF - Bourns PCB footprint - Other - Other - PDB12-H4251-202BF-1
click to zoom
3D Models
PDB12-H4251-202BF - Bourns - 3D model - Other - PDB12-H4251-202BF-1
click to zoom

PDB12-H4251-202BF Details

  • Manufacturer Part Number:

    PDB12-H4251-202BF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.40.80.70

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Bourns Inc

  • YTEOL:

    6.65

  • Actuator Orientation:

    VERTICAL

  • Actuator Type:

    SHAFT

  • Construction:

    Circular

  • Ganging Number:

    1

  • Lead Length:

    3.2 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Terminals:

    3

  • Number of Turns:

    1

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -10 °C

  • Package Diameter:

    12.4 mm

  • Package Height:

    8.7 mm

  • Package Style:

    Radial

  • Rated Power Dissipation (P):

    0.08 W

  • Resistance:

    2000 Ω

  • Resistance Law:

    LINEAR

  • Resistor Type:

    POTENTIOMETER

  • Rotational Angle:

    300 deg

  • Surface Mount:

    NO

  • Technology:

    CARBON

  • Terminal Shape:

    FLAT

  • Tolerance:

    20%

  • Working Voltage:

    150 V

PDB12-H4251-202BF Frequently Asked Questions (FAQs)

  • Bourns recommends a symmetrical PCB layout with a solid ground plane, and keeping the input and output traces as short as possible to minimize EMI and noise.
  • Bourns recommends following the derating guidelines in the datasheet, using a heat sink if necessary, and ensuring good airflow around the device to prevent overheating.
  • Yes, the PDB12-H4251-202BF is designed to withstand vibrations up to 10G, but it's recommended to follow the mounting and soldering guidelines in the datasheet to ensure reliable operation.
  • Check the input voltage, output load, and PCB layout for any issues. Verify that the device is properly soldered and mounted. Use an oscilloscope to monitor the output voltage and current. If issues persist, contact Bourns' technical support for further assistance.
  • Yes, the PDB12-H4251-202BF is compatible with lead-free soldering processes, but it's recommended to follow the soldering guidelines in the datasheet to ensure reliable operation.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PDB12-H4251-202BF Overview

Use the download button to access the PDB12-H4251-202BF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PDB12, or try a keyword search, such as Variable Resistors
