PDB181-P415K-103B - Bourns

Description: Potentiometers PANEL CONTROL - 17MM-ST-CARBON

Download PDB181-P415K-103B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PDB181-P415K-103B - Bourns - PCB symbol
click to zoom
PCB Footprints

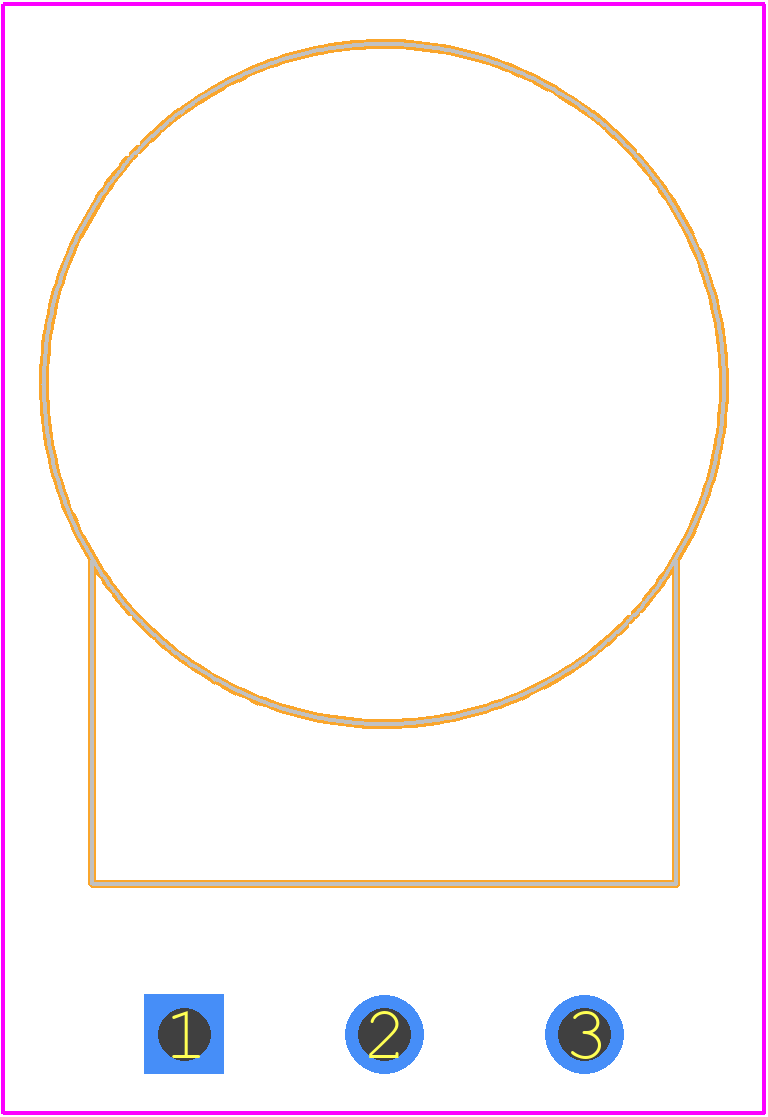

PDB181-P415K-103B - Bourns PCB footprint - Other - Other - PDB181-P415K-103B-2
click to zoom
3D Models
PDB181-P415K-103B - Bourns - 3D model - Other - PDB181-P415K-103B-2
click to zoom

PDB181-P415K-103B Details

  • Manufacturer Part Number:

    PDB181-P415K-103B

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.40.80.70

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Bourns Inc

  • YTEOL:

    6.65

  • Construction:

    Rotary

  • Mounting Feature:

    PANEL MOUNT

  • Number of Terminals:

    3

  • Operating Temperature-Max:

    50 °C

  • Operating Temperature-Min:

    -10 °C

  • Package Diameter:

    17 mm

  • Package Length:

    9.5 mm

  • Package Style:

    Panel Mount

  • Rated Power Dissipation (P):

    0.2 W

  • Resistance:

    10000 Ω

  • Resistor Type:

    POTENTIOMETER

  • Rotational Angle:

    300 deg

  • Surface Mount:

    NO

  • Technology:

    CARBON

  • Tolerance:

    20%

  • Working Voltage:

    200 V

PDB181-P415K-103B Frequently Asked Questions (FAQs)

  • The operating temperature range for the PDB181-P415K-103B is -40°C to +125°C.
  • Yes, the PDB181-P415K-103B is designed for high-frequency applications up to 1 GHz.
  • The recommended PCB land pattern for the PDB181-P415K-103B is available in the Bourns application note AN-13, which can be found on the Bourns website.
  • The PDB181-P415K-103B has a maximum current rating of 1.03 A, so it's suitable for low-to-moderate current applications. For high-current applications, consider using a different inductor with a higher current rating.
  • Yes, the PDB181-P415K-103B is RoHS and REACH compliant, making it suitable for use in environmentally friendly designs.
