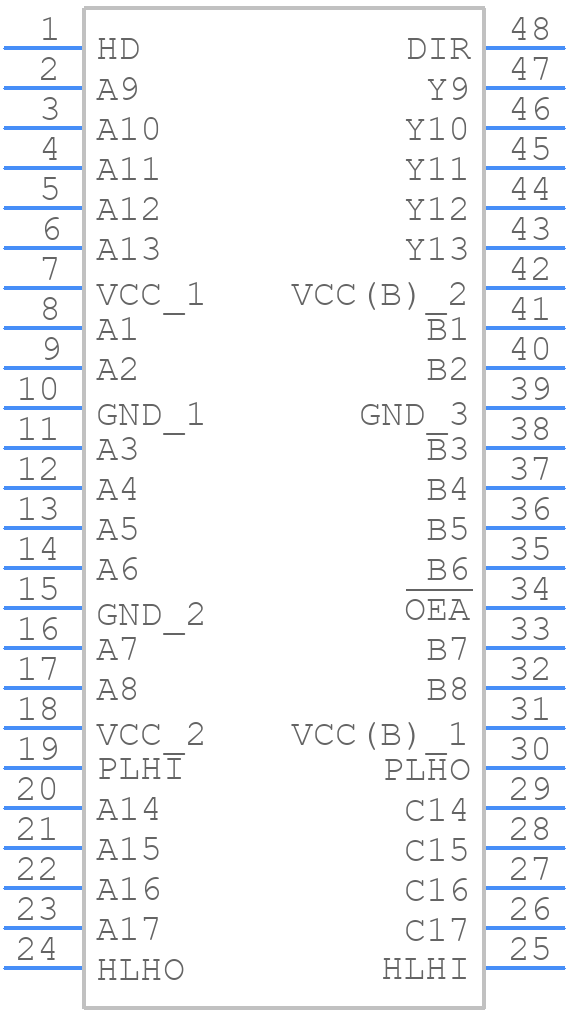

PDI1284P11DGG,118 - Nexperia

PDI1284P11DGG,118 Details

• Manufacturer Part Number:

  PDI1284P11DGG,118

• Brand Name:

  Nexperia

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  TSSOP

• Package Description:

  TSSOP-48

• Pin Count:

  48

• Manufacturer Package Code:

  SOT362-1

• Country Of Origin:

  Thailand

• HTS Code:

  8542.39.00.60

• Date Of Intro:

  2017-02-01

• Manufacturer:

  Nexperia

• YTEOL:

  0

• Control Type:

  COMMON CONTROL

• Count Direction:

  BIDIRECTIONAL

• Family:

  P

• JESD-30 Code:

  R-PDSO-G48

• Length:

  12.5 mm

• Load Capacitance (CL):

  50 pF

• Logic IC Type:

  BUS TRANSCEIVER

• Max I(ol):

  0.014 A

• Moisture Sensitivity Level:

  1

• Number of Bits:

  8

• Number of Functions:

  1

• Number of Ports:

  2

• Number of Terminals:

  48

• Operating Temperature-Max:

  70 °C

• Output Characteristics:

  3-STATE

• Output Polarity:

  TRUE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TSSOP

• Package Equivalence Code:

  TSSOP48,.3,20

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

• Peak Reflow Temperature (Cel):

  260

• Power Supply Current-Max (ICC):

  60 mA

• Prop. Delay@Nom-Sup:

  23 ns

• Propagation Delay (tpd):

  23 ns

• Seated Height-Max:

  1.2 mm

• Supply Voltage-Max (Vsup):

  3.6 V

• Supply Voltage-Min (Vsup):

  3 V

• Supply Voltage-Nom (Vsup):

  3.3 V

• Surface Mount:

  YES

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  6.1 mm
